Teflon with shield | multi-core | 8 x 24F-Cuvz |

Technical data:

Conductor: strand, Cu tin-plated, 4 x 2 x AWG 24F, 0.25 mm² (14 x 0.15 mm)
Conductor insulation: FEP Teflon
Conductor guide: 4 x 2 strands
Braiding: Cu tin-plated
Outer sheathing: FEP Teflon
Operating temperature: -80 °C to +180 °C
Outer dimension: approx. 7.8 mm round
Sheathing colour: black
Core colour: blue/red, yellow/green, white/brown, pink/grey

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description
Additional information

Description

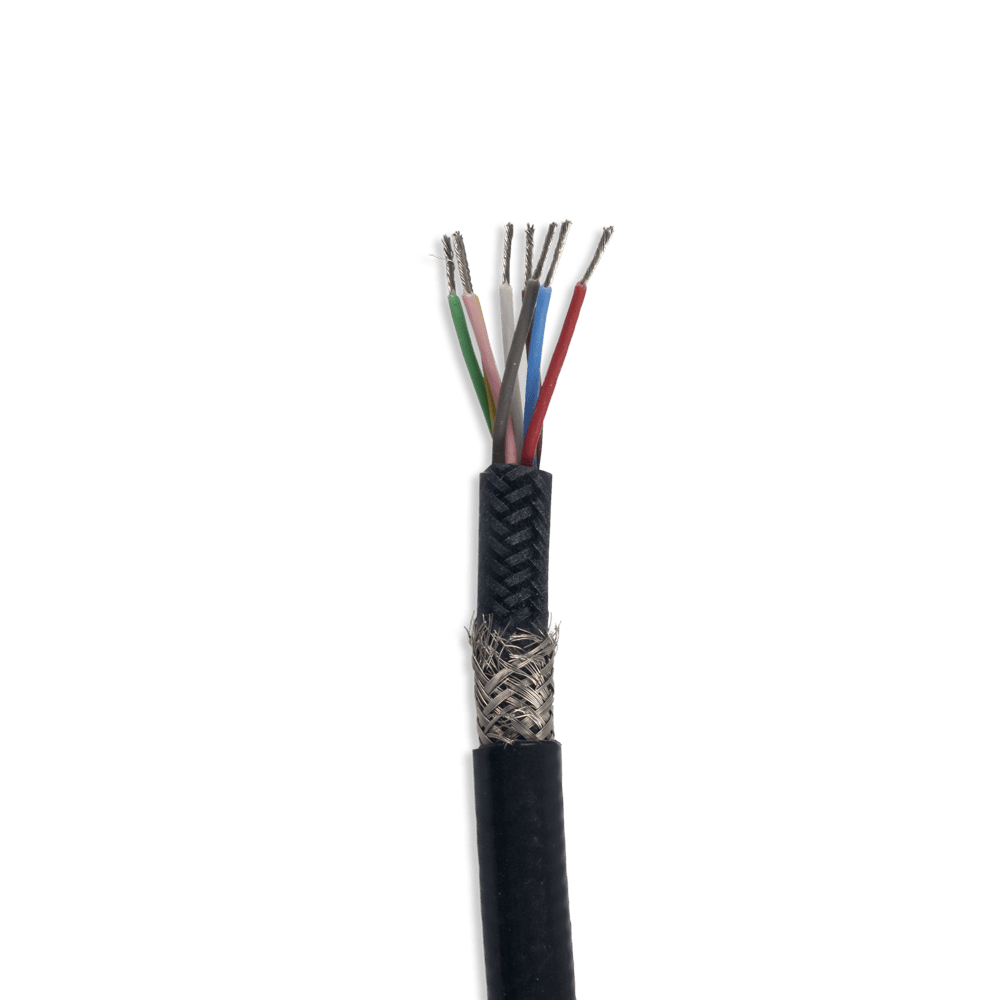

TEX/CUTEXTW-8 x 24F-Cuvz

Technical data:

Type: connection wire for resistance thermometers
Conductor: strand, Cu tin-plated, 4 x 2 x AWG 24F, 0.25 mm² (14 x 0.15 mm)
Conductor insulation: FEP Teflon
Conductor guide: 4 x 2 strands
Braiding: Cu tin-plated
Outer sheathing: FEP Teflon
Operating temperature: -80 °C to +180 °C
Outer dimension: approx. 7.8 mm round
Sheathing colour: black
Core colour: blue/red, yellow/green, white/brown, pink/grey

Packaging

individual lengths possible
coiled as ring up to 10m
more then 10m on a plastic coil
delivery as one piece, if not diffrently declared

Discount on large quantities on request.

Additional information

Weight	1,00 kg

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request

SKU: 111 Categories: Wires and cables, Connection wires, Teflon

Is your product not included?

Do you need an offer in advance? Do you need an individual solution? No problem: just give us a call and send us an email. Phone: +49 (0) 2266 / 487330-30 or E-Mail: info@therma-shop.de.
