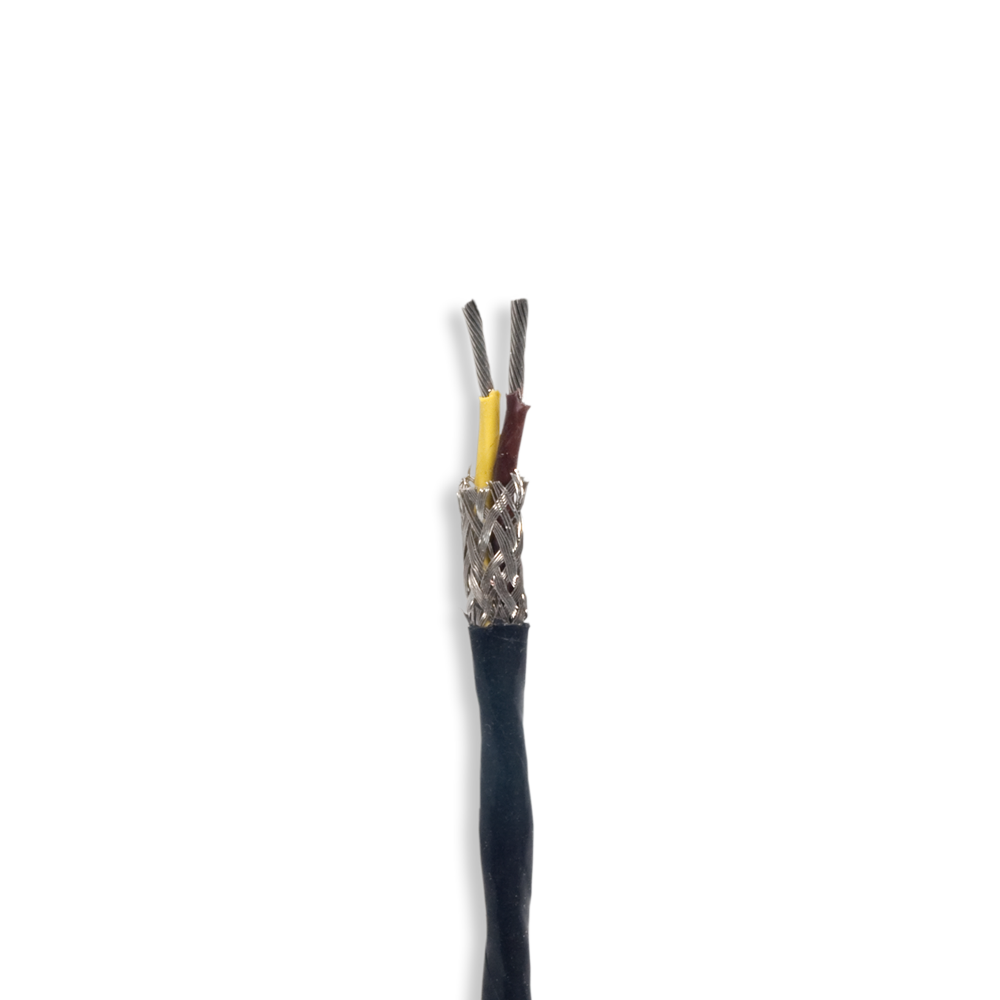

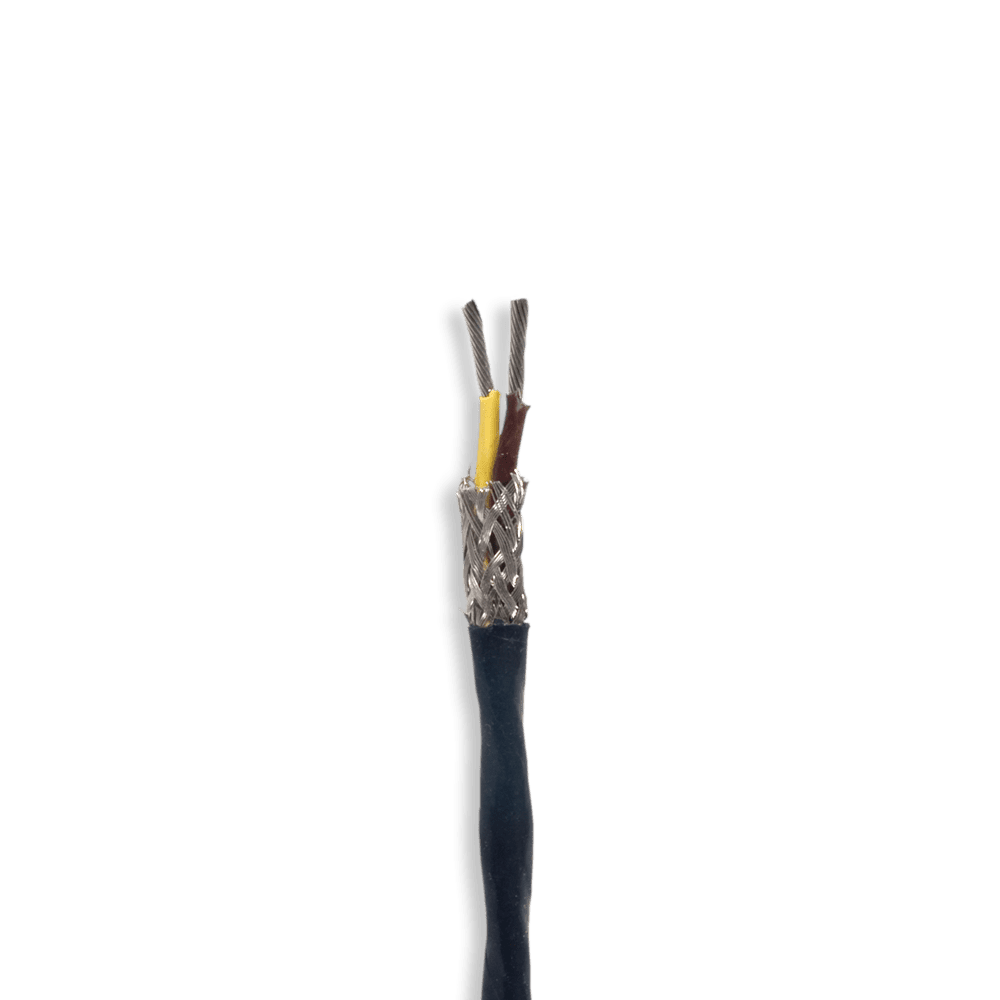

Teflon with shield | 2 x 0,75mm²-Cuvn |

Technical data:

Conductor: strand, 2 x 0.75 mm² (19 x 0.225 mm)
Conductor insulation: PTFE Teflon
Conductor guide: stranded
Braiding: Cu nickel plated
Outer sheathing: PTFE Teflon
Operating temperature: -190 °C to +265 °C
Outer dimension: approx. 4.4 mm round
Sheathing colour: black
Core colour: yellow, brown

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description
Additional information

Description

TF/CUTFTW-2×0,75mm²-Cuvn

Technical data:

Type: connection wire for resistance thermometers
Conductor: strand, 2 x 0.75 mm² (19 x 0.225 mm)
Conductor insulation: PTFE Teflon
Conductor guide: stranded
Braiding: Cu nickel plated
Outer sheathing: PTFE Teflon
Operating temperature: -190 °C to +265 °C
Outer dimension: approx. 4.4 mm round
Sheathing colour: black
Core colour: yellow, brown

Packaging

individual lengths possible
coiled as ring up to 20m
more then 20m on a plastic coil
delivery as one piece, if not diffrently declared

Discount on large quantities on request.

Additional information

Weight	0,40 kg

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request

SKU: 109 Categories: Wires and cables, Connection wires, Teflon

Is your product not included?

Do you need an offer in advance? Do you need an individual solution? No problem: just give us a call and send us an email. Phone: +49 (0) 2266 / 487330-30 or E-Mail: info@therma-shop.de.
