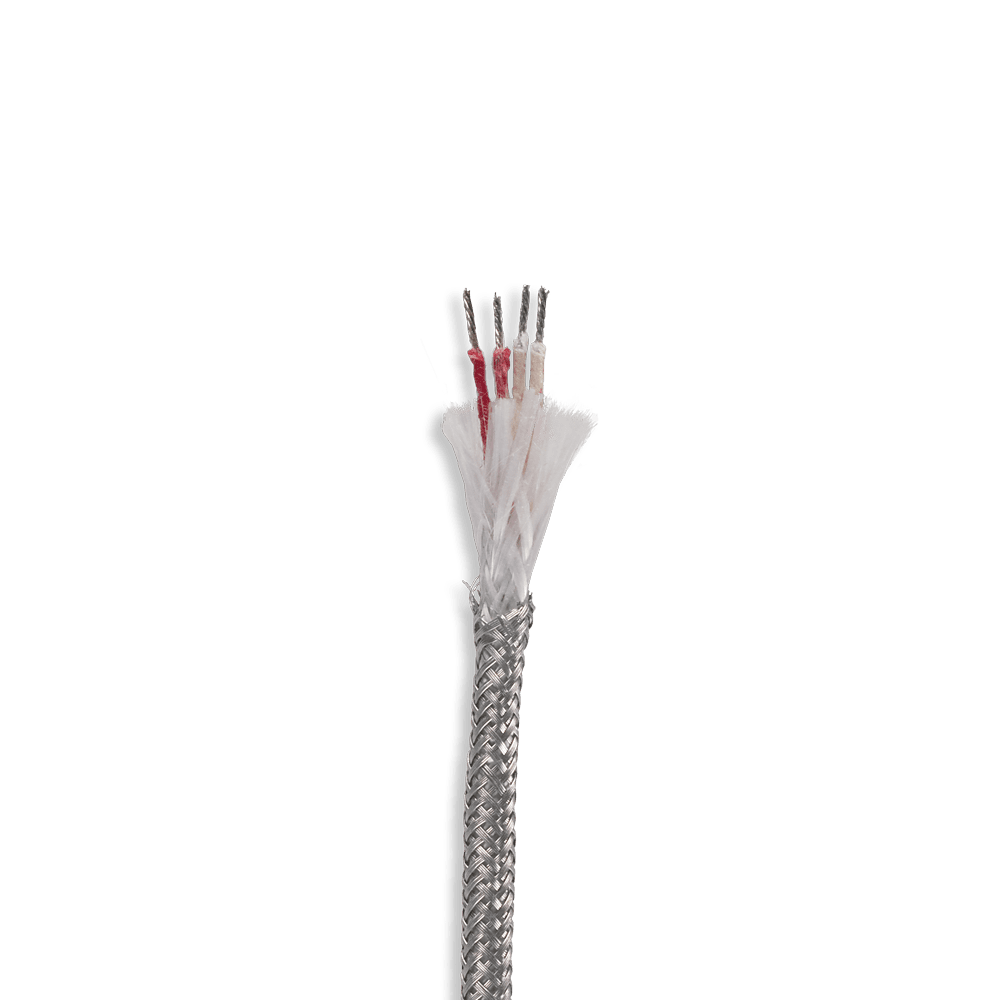

Fiberglass with armour braiding| 4 x 24F-Cuvn | +350°C

Technical data:

Conductor: strand, Cu nickel-plated, AWG 24F, 4 x 0.22 mm² (7 x 0.2 mm)
Conductor insulation: fibreglass
Conductor guide: stranded with fibreglass filler insulation
Outer sheathing: armour stainless steel braiding
Operating temperature: up to +350 °C
Outer dimension: approx. 3.2 mm round
Sheathing colour: silvery
Core colour: 2x red, 2x white

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description
Additional information

Description

G/GSTW-4 x 24F-Cuvn

Technical data:

Type: connection wire for resistance thermometers
Conductor: strand, Cu nickel-plated, AWG 24F, 4 x 0.22 mm² (7 x 0.2 mm)
Conductor insulation: fibreglass
Conductor guide: stranded with fibreglass filler insulation
Outer sheathing: armour stainless steel braiding
Operating temperature: up to +350 °C
Outer dimension: approx. 3.2 mm round
Sheathing colour: silvery
Core colour: 2x red, 2x white

Packaging

individual lengths possible
coiled as ring up to 25m
more then 25m on a plastic coil
delivery as one piece, if not diffrently declared

Discount on large quantities on request.

Additional information

Weight	0,23 kg

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request

SKU: 117 Categories: Wires and cables, Connection wires, Fibreglass

Is your product not included?

Do you need an offer in advance? Do you need an individual solution? No problem: just give us a call and send us an email. Phone: +49 (0) 2266 / 487330-30 or E-Mail: info@therma-shop.de.
