THN 200
THN 400
THN 1250

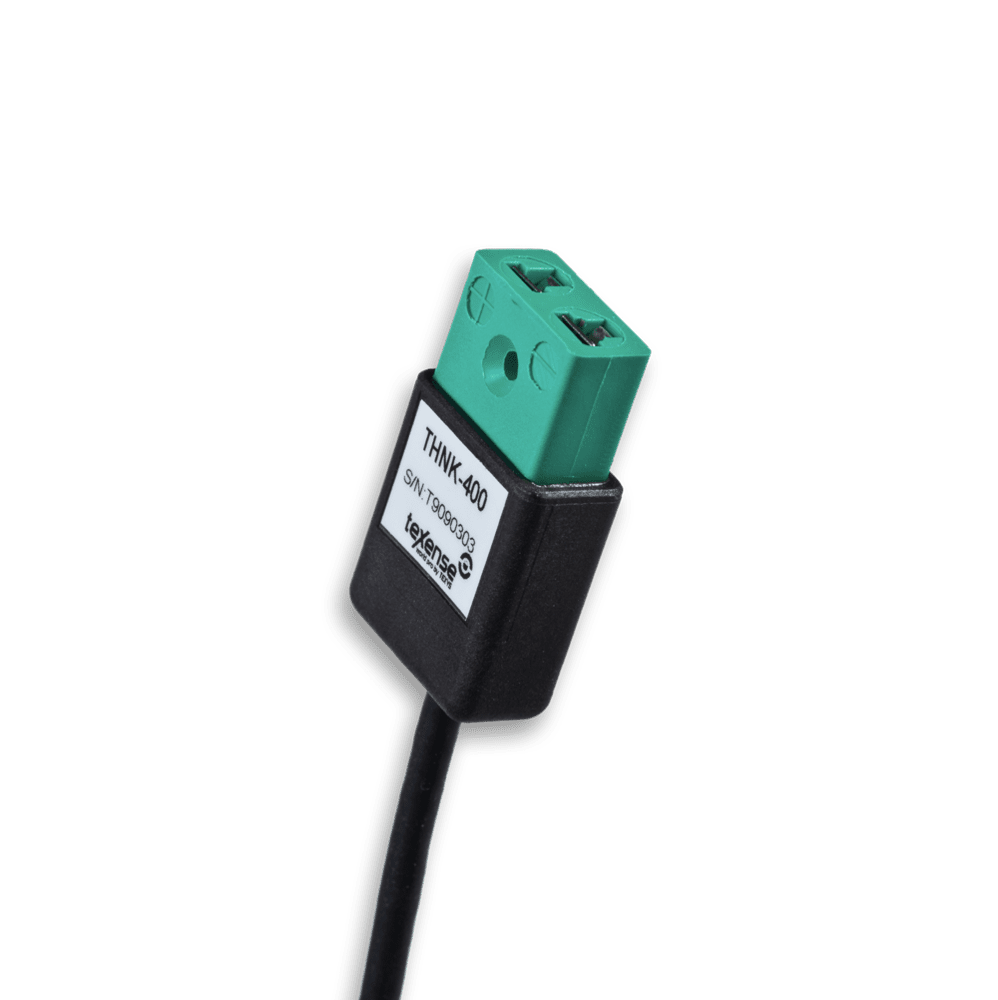

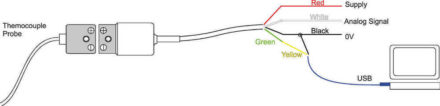

Compatible with any thermocouple probe type K fitted with a miniature plug. The thermocouple probe wires must be isolated from supply ground.
Range:
- THN 200: -50 to 200 °C
- THN 400: -100 to 400 °C
- THN 1250: 0 to 1250 °C
Sensitivity:
- THN 200: 20 mV/°C
- THN 400: 10 mV/°C
- THN 1250: 4 mV/°C
Technical data:
- Type: K, J, T, …
- Accuracy Digital output: ± 0.5 °C
- Cold junction error: ± 0.7 °C
- Accuracy Analog output: ± 0.25 % FS
- Drift vs Ambiant Temperature Analog output: ± 0.25 % FS
- Sensitivity: Linear (See calibration table) mV/°C
- Sampling frequency: 5 Hz
- Supply Voltage: 5–16 V or 12–33 V
- Supply Current: 3 mA
- Output Voltage: 0–5 V or 0–10 V
- Output Impedance: 47 Ω
- Digital output*: ASCII @ 5hz, 9600 Bauds
- Calibrator: Fluke 714

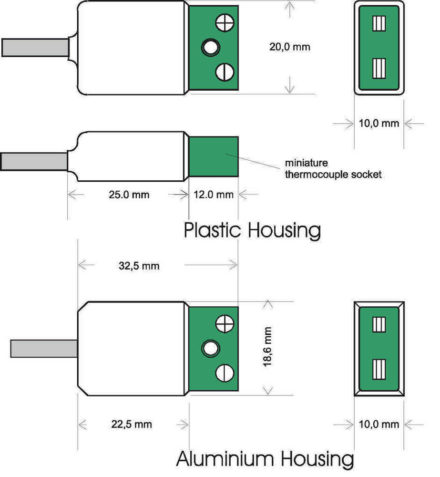

- Dimension “P” type: 35 x 20 x 10 mm
- Material “P” type: Plastic
- Dimension “A” type: 32.5 x 19 x 10 mm
- Material “A” type: Aluminium
- Weight: 15 g
- Protection: IP53
- Vibration test: 20Gpp5’
- Shock: 500 G
- Operating Temp: -40 to +125 °C
- Storage Temp: -40 to + 125 °C
| Target °C | -50 to +200 °C 20 mV/°C | -100 to +400 °C 10 mV/°C | 0 to 1250 °C 4 mV/°C |
|---|---|---|---|
| -100 | 0.00 | ||
| -50 | 0.00 | 0.50 | |
| 0 | 1.00 | 1.00 | 0.00 |
| 50 | 2.00 | 1.50 | 0.20 |
| 100 | 3.00 | 2.00 | 0.40 |
| 150 | 4.00 | 2.50 | 0.60 |
| 200 | 5.00 | 3.00 | 0.80 |
| 300 | 4.00 | 1.20 | |
| 400 | 5.00 | 1.60 | |
| 600 | 2.40 | ||
| 800 | 3.20 | ||
| 1000 | 4.00 | ||
| 1250 | 5.00 |
