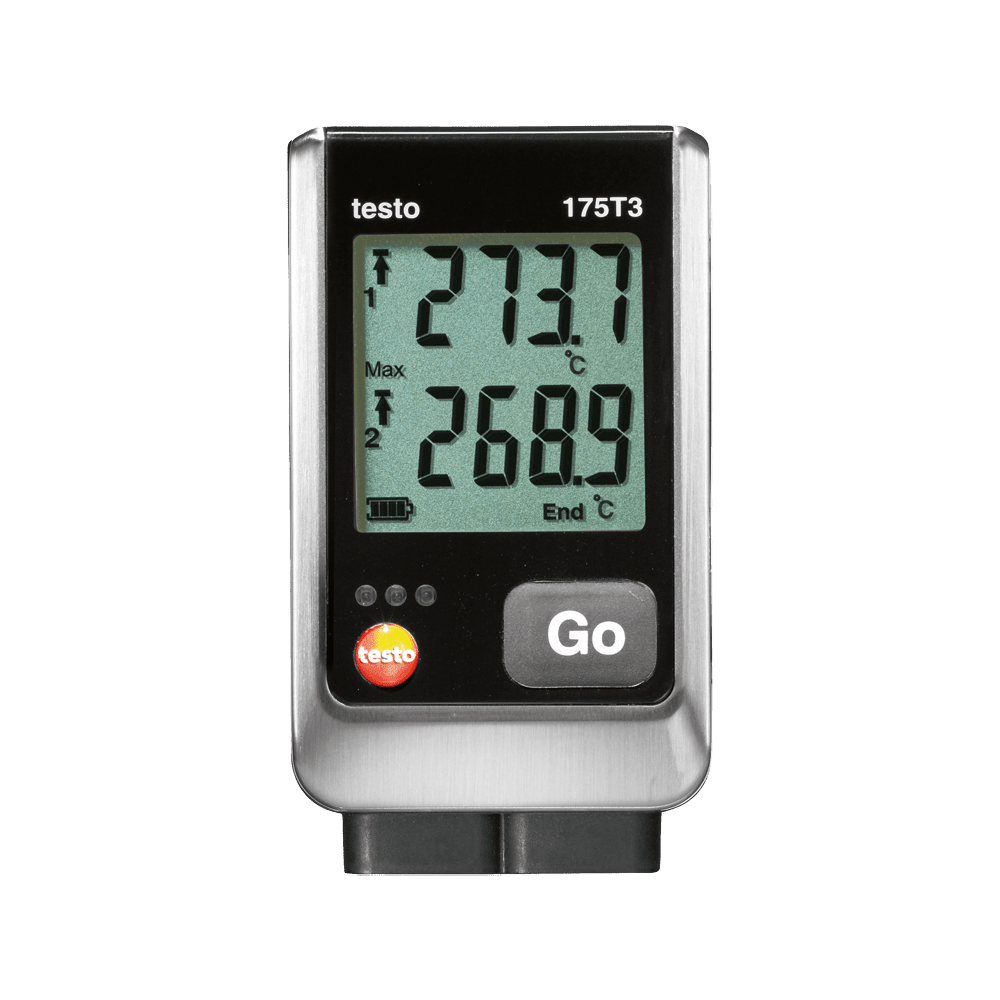

Data logger for two external thermocouples
- Connection 2 x plug miniature (CMP)
Type K (NiCr-Ni)
- Measuring range: -50 … +1000 °C
- Accuracy ±1 digit: ±0.5 °C (-50 … +70 °C); ±0.7 % of m.v. (+70.1 … +1000 °C)
- Resolution: 0.1 °C
Type T (Cu-CuNi)
- Measuring range: -50 … +400 °C
- Accuracy ±1 digit: ±0.5 °C (-50 … +70 °C); ±0.7 % of m.v. (+70.1 … +400 °C)
- Resolution: 0.1 °C
Benefits
- Large, easily legible display
- High data security
- Measurement data memory for 1 million measurement values
- Up to 3 years’ battery life
- Data transfer via USB cable or SD card
- Two external sensor connections (thermocouple Type T and Type K)
Description
Temperature often needs to be monitored and recorded simultaneously at two sites. The testo 175 T3 is excellently suited to this job, thanks to two connections for external thermocouple probes (Type K and Type T). The wide measuring range makes the data logger universally applicable. The free ComSoft Basic software allows fast programming of the data logger and easy data analysis. In the autumn, the heating period begins, and with it the time for complaints by tenants that their appartments cannot be heated to the desired extent. With the testo 175 T3 and the versatile external thermocouple probes, you can, for example, perform targeted checks on the flow and return temperatures of individual radiators, in order to identify and remedy causes.
Technical data
- Channels: 2 x external
- Battery type: 3 x AlMn Typ AAA or Energizer
- Battery life: 3 years (15 min. measuring cycle, +25 °C)
- Operating temperature: -20 to +55 °C
- Storage temperature: -20 to +55 °C
- Dimensions: 89 x 53 x 27 mm
- Weight: 130 g
- Housing: ABS/PC
- EC Directive: 2004/108/EG
- Protection class: IP65
- Measuring rate: 10 sec – 24 h
- Memory: 1 mio. measurement values
Equipment / Items delivered
testo 175 T3, 2-channel temperature data logger with external sensor connections (TC Type T and Type K) incl. wall holder, lock, batteries and calibration protocol
Discount on large quantities on request
