Use:

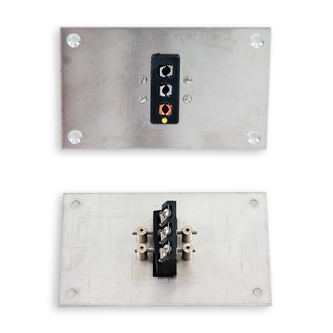

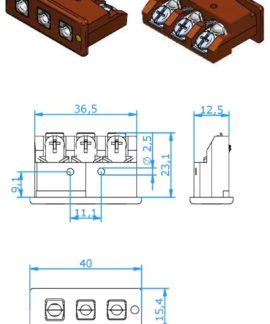

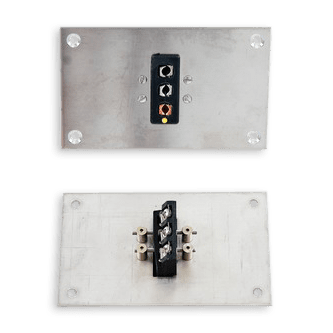

Panel assembly for thermocouples and RTD circuits for mounting in control rooms, test stands, laboratory applications, pilot plans, etc. Third connection for ground or continuous shield connection or for three wire RTD´s. This Panel is mounted with Panel standard insert (PSITH).
Mechanical design:
- Stainless steel, corrosion-proof.
- Attachments of stainless steel.
- The assembly type and design prevent the fitted built-in couplings from being pushed in or out.
- The bevelled connection levels enable easy connection and
disconnection of the conductors in the installed condition. - Standard panels for upt to 6 measurement circuits.
Conductor diameter:
- Accepts wires upto 1,6 mm.
Temperature load:
- Max. +350 °C.

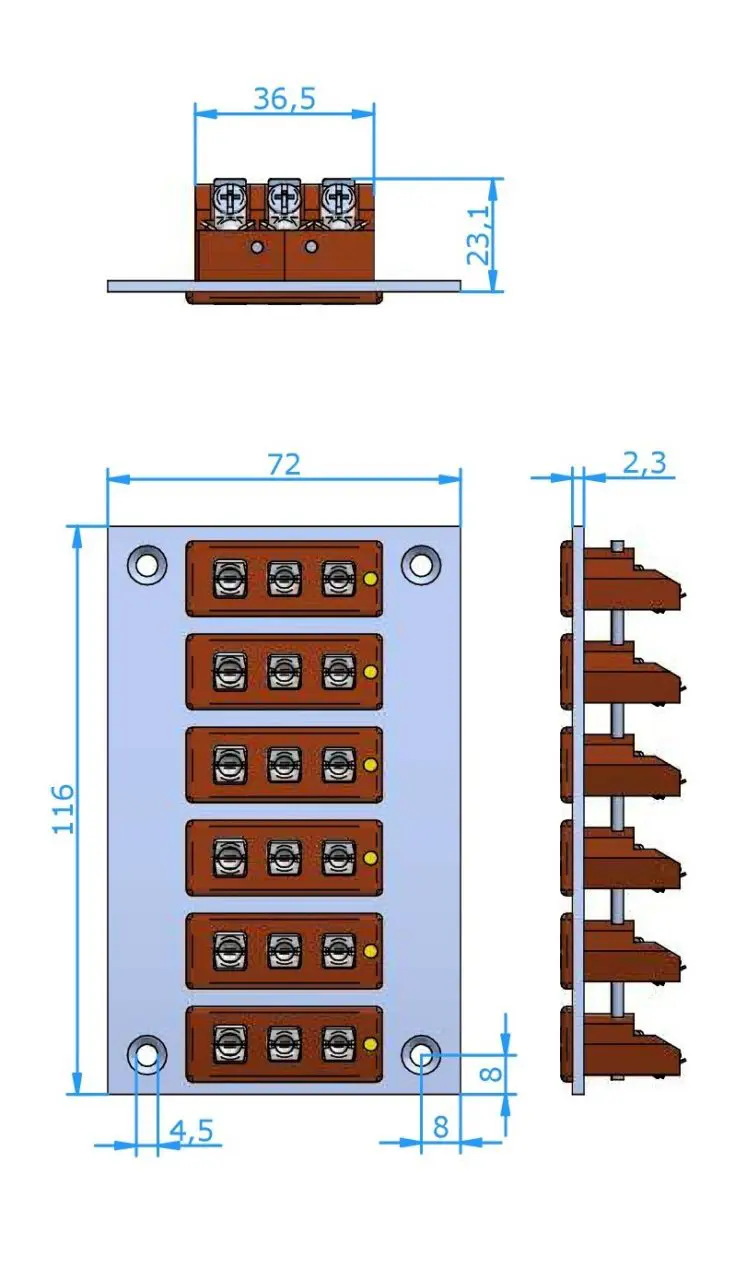

Dimension:
| Circuits | Rows | Panel dimension (L x H in mm) | Dimension panel cut-out (in mm) |
|---|---|---|---|
| 1 | 1 | 72 x 116 | 30 x 45 |
| 2 | 1 | 72 x 116 | 50 x 45 |
| 3 | 1 | 72 x 116 | 62 x 45 |
| 4 | 1 | 72 x 116 | 80 x 45 |
| 5 | 1 | 72 x 116 | 94 x 45 |
| 6 | 1 | 72 x 116 | 112 x 45 |
Available types:
- online available: Type K, J, E, N, T, U, R/S, B
- on request: Type C

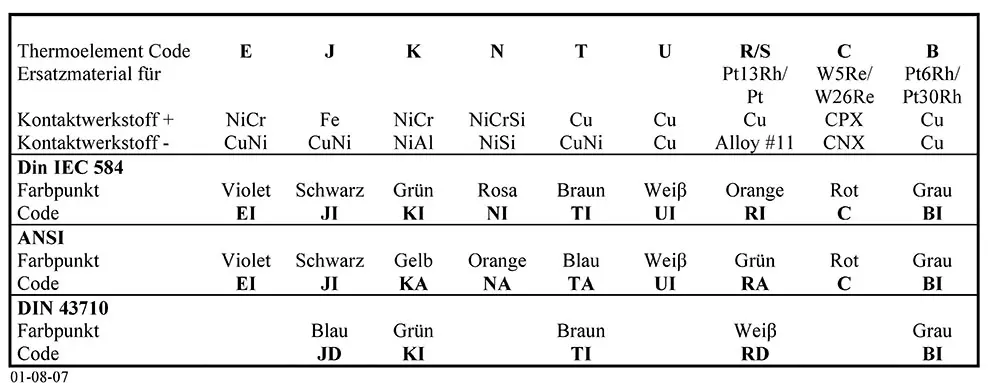

Colour designations:
- The housing colour is brown with a colour dot
Material-Code:
Discount on large quantities on request
