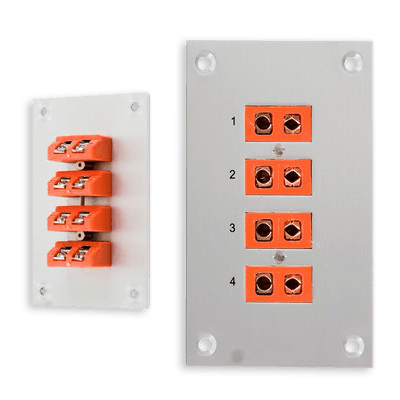

Use:
Panel assembly for thermocouples and RTD circuits for mounting in control rooms, test stands, laboratory applications, pilot plans, etc.
This Panel is mounted with Panel standard insert (PSI).
Mechanical design:
- Aluminium front plate, anodised, protected against corrosion.
- Measurement circuit numbering, abrasion- and wipe-proof.
- Attachments of stainless steel and nickel-plated brass.
- The assembly type and design prevent the fitted built-in couplings
from being pushed in or out. - The bevelled connection levels enable easy connection and
disconnection of the conductors in the installed condition. - Individual panel insert can be replaced by loosening only a few screws.
- Standard panels for 1 to 6 measurement circuits.
Conductor diameter:
- Accepts wires upto 1,6 mm.
Temperature load:
- Max. +220 °C.
Available types:
- online available: Type K, J, E, N, T, U, R/S, B
- on request: Type C

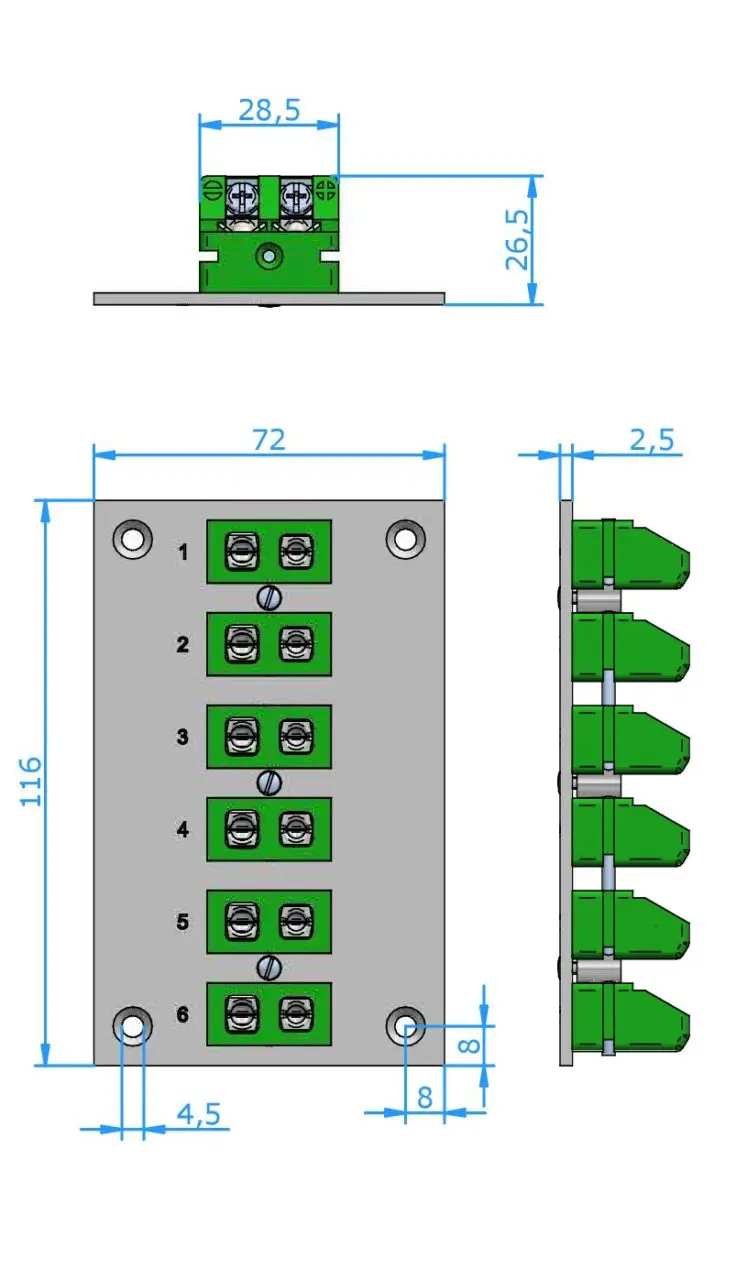

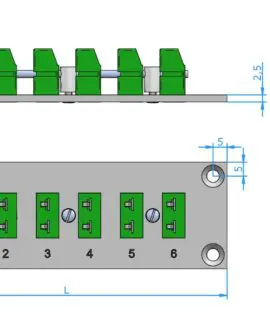

Dimension:
| Circuits | Rows | Panel dimension (L x H in mm) | Dimension panel cut-out (in mm) |
|---|---|---|---|
| 1 | 1 | 72 x 116 | 30 x 40 |
| 2 | 1 | 72 x 116 | 50 x 40 |
| 3 | 1 | 72 x 116 | 62 x 40 |
| 4 | 1 | 72 x 116 | 80 x 40 |
| 5 | 1 | 72 x 116 | 94 x 40 |
| 6 | 1 | 72 x 116 | 112 x 40 |
Material-Code:
Discount on large quantities on request
