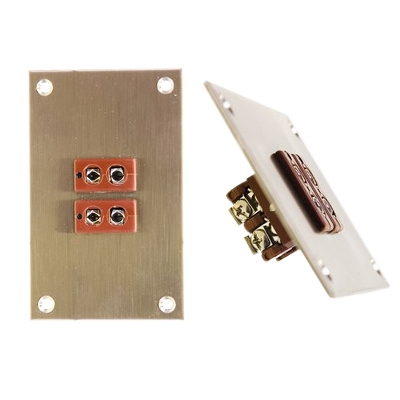

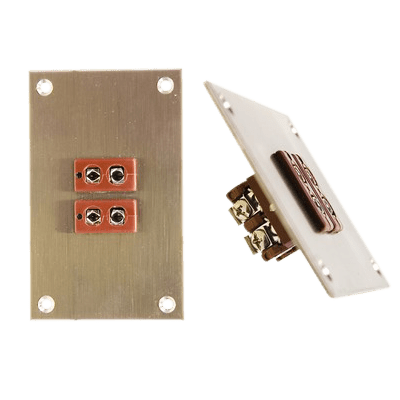

Use:
Panel assembly for thermocouples and RTD circuits for mounting in control rooms, test stands, laboratory applications, pilot plans, etc.
This Panel is mounted with Panel standard insert (PSIH).
Mechanical design:
- Stainless steel, corrosion-proof.
- Attachments of stainless steel.
- The assembly type and design prevent the fitted with the standard high temperature panel insert PSIH-(…) from being pushed in or out.
- The bevelled connection levels enable easy connection and disconnection of the conductors in the installed condition.
- Standard panels for 6 measurement circuits.
Conductor diameter:
- Accepts wires up to 1,6 mm.
Temperature load:
- Max. +350 °C.
Dimension:

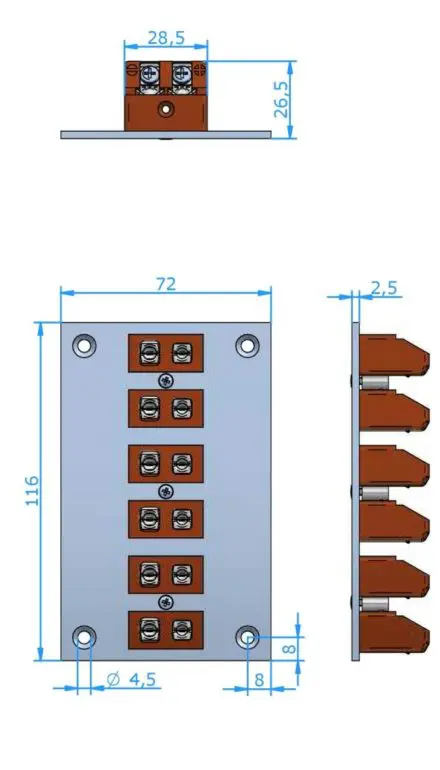

| Circuits | Rows | Panel dimension (L x H in mm) | Dimension panel cut-out (in mm) |
|---|---|---|---|
| 1 | 1 | 72 x 116 | 30 x 40 |
| 2 | 1 | 72 x 116 | 50 x 40 |
| 3 | 1 | 72 x 116 | 62 x 40 |
| 4 | 1 | 72 x 116 | 80 x 40 |
| 5 | 1 | 72 x 116 | 94 x 40 |
| 6 | 1 | 72 x 116 | 112 x 40 |
Available types:
- online available: Type K, J, E, N, T, U, R/S, B
- on request: Type C
Material-Code:
- Calibration indicated by printing on brown body.
Discount on large quantities on request
