Application:

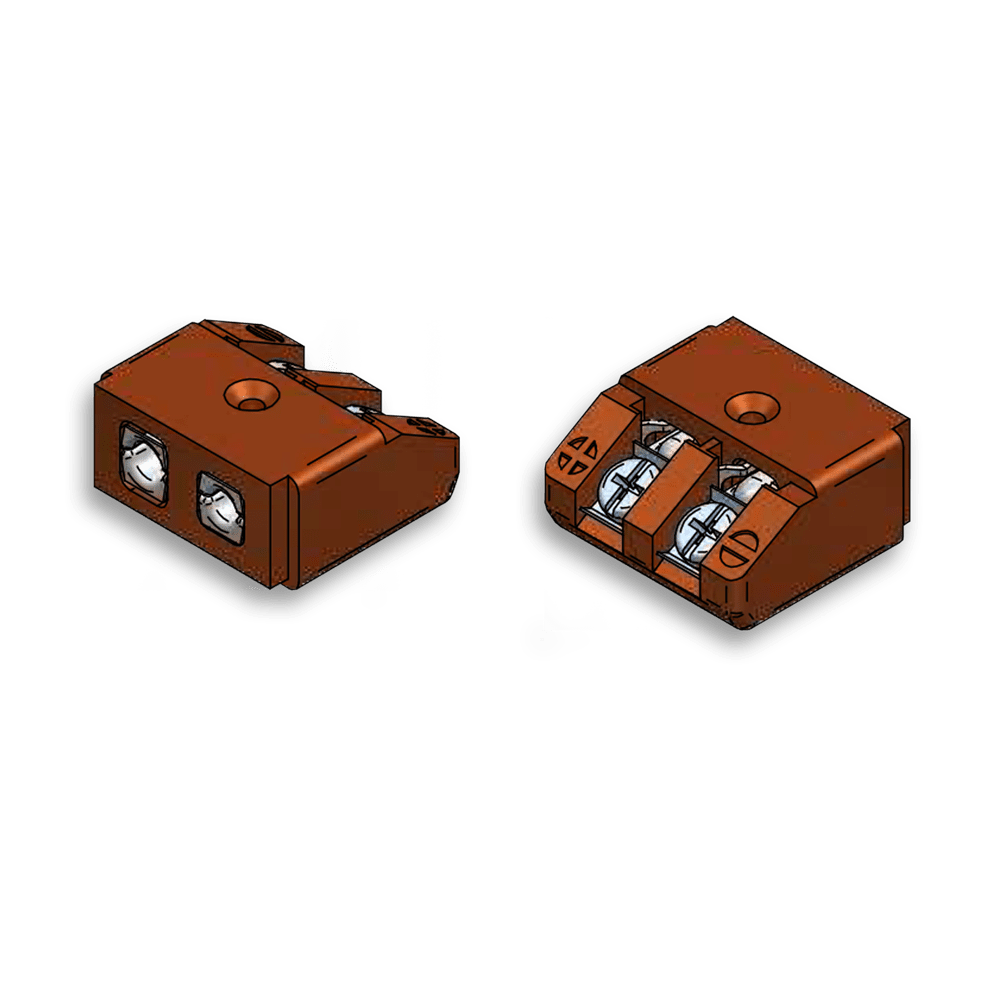

Panel insert for thermocouple and RTD circuits.
Mechanical design:
- Thermoset body with original thermocouple material
- springloaded inserts.
- Polarized pins.
- Molded barriers prevent short circuit.
- Polarity indication next to connection screws.
Conductor diameter:
- Accepts wires up to 1,6 mm.
Temperature load:
- Max. +350 °C.
Available types:
- online available: Type K, J, E, N, T, U, R/S, B
- on request: Type C
Colour designations:
- Body color brown. Calibration indication printed on body.
Material-Code:
Discount on large quantities on request
