Use:

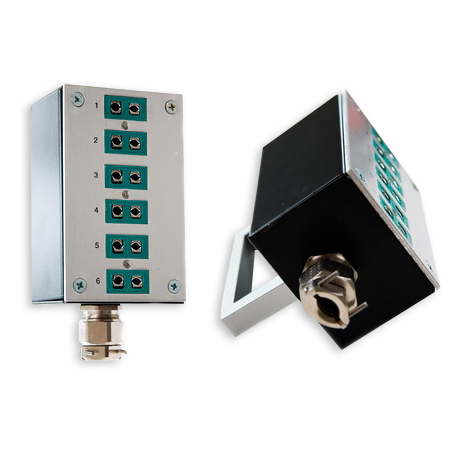

Multiple Jack for thermocouple and RTD circuits. Suitable for connecting up to 6 standard circuits simultaneously.

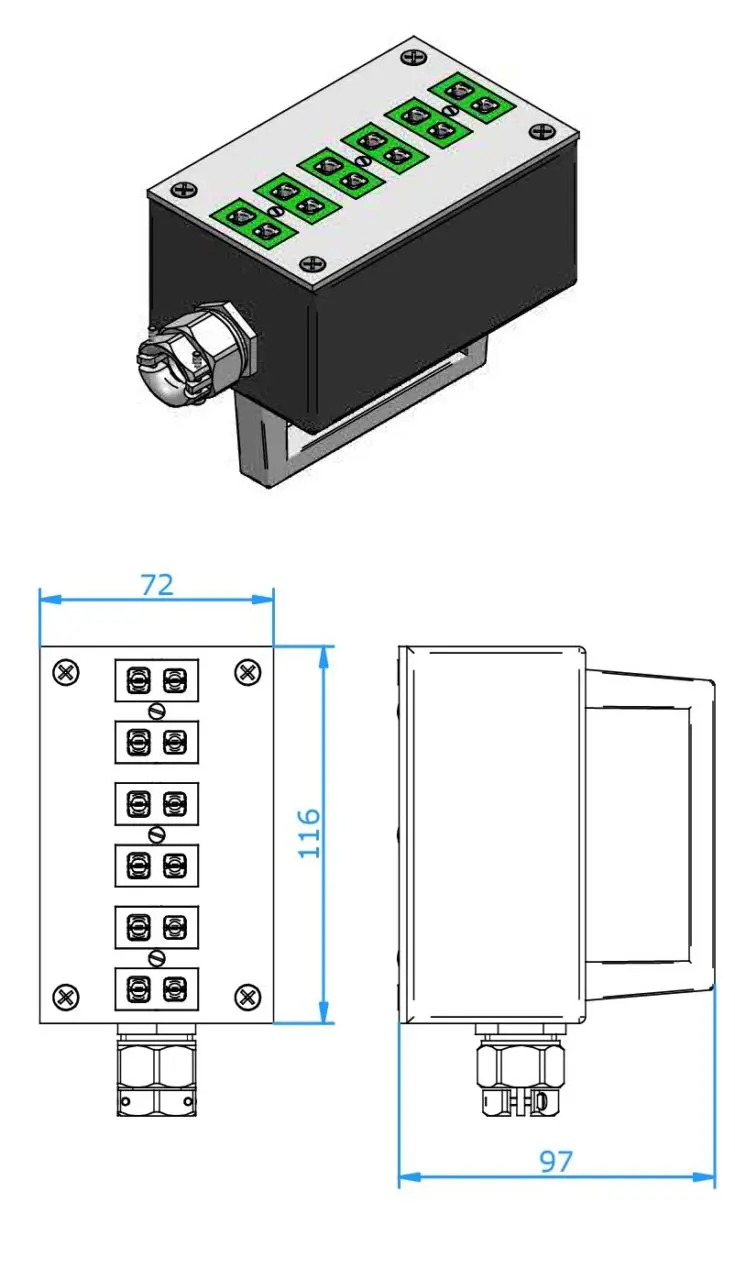

Mechanical design:
- Rugged steel epoxy painted housing.
- Anodised aluminium handle for easy disconnection of the plug connectors.
- Available with contacts for 1 to 6 measurement circuits.
- Incorporates a standard vertical panel, Type “PAV-(…)” .
Conductor diameter:
- Reliable connection from 0.2 mm to 2.0 mm diameter.
- Cable inlet screw fitting PG13 for cable diameter up to 15 mm.
Temperature load:
- Max. 200 °C.
Available types:
- online available: Type K, J, E, N, T, U, R/S
- on request: Type C
Colour designations:
- All international colour designations are available.
Article number:
Discount on large quantities on request
