Application:
Allows the use of two standard connectors to be fitted on duplex mineral insulated metal sheathed cable or duplex wire.
Construction:
- stainless steel crimp braze/crimp-tube (AISI-SS303 / DIN 1.4305)

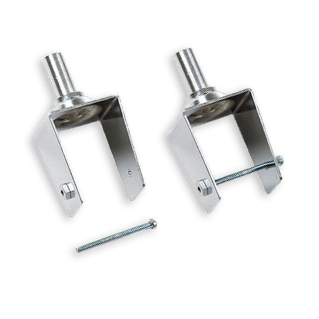

- the central screw holds the connectors between the u-bracket
- possible diameter from 1,7 to 9,7mm.
- suitable for connector standard and connector standard high-temperature
- braze or crimp for strain relief
Order code

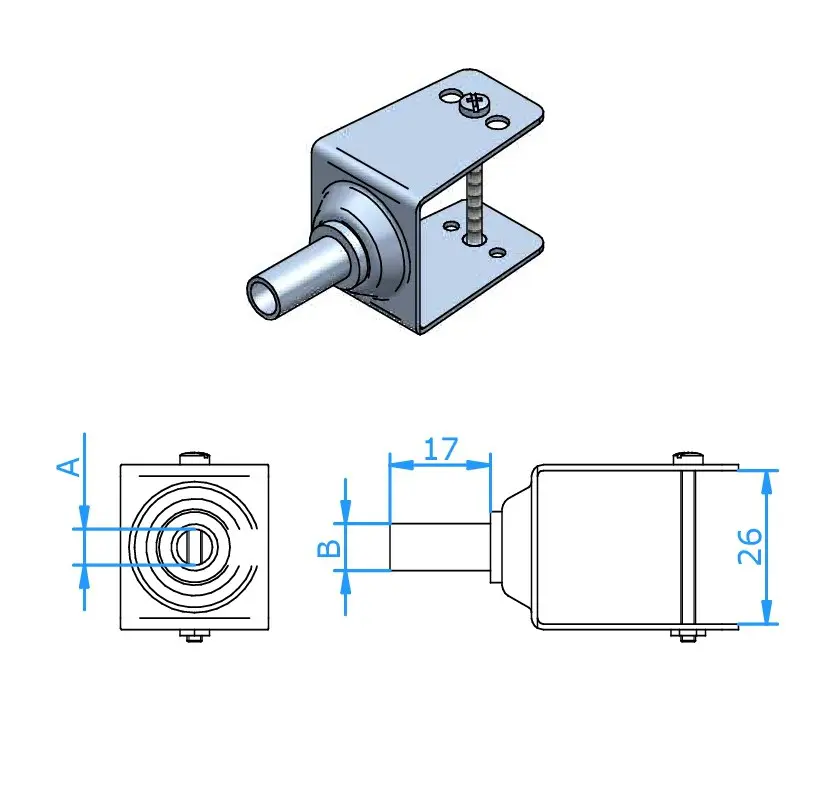

| number | A (mm) | B (mm) |
|---|---|---|
| 20.116-1 | 6,1 | 7,9 |
| 20.116-2 | 8,1 | 9,9 |
| 20.116-3 | 6,5 | 7,9 |
| 20.116-4 | 1,7 | 3,5 |
| 20.116-5 | 3,3 | 5,1 |
| 20.116-6 | 4,9 | 6,7 |
| 20.116-7 | 9,7 | 11,3 |
Discount on large quantities on request
