Use:
Built-in couplings for assembly with panel kits into complete miniature panels.
Advantage:
Locking Panel insert for thermocouple and RTD circuits. When used together with CMLP the locking feature will prevent accidental disconnection due to vibration etc.

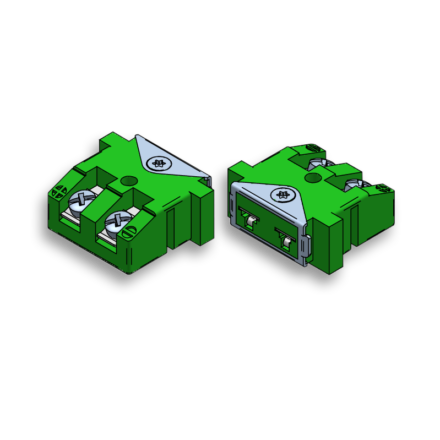

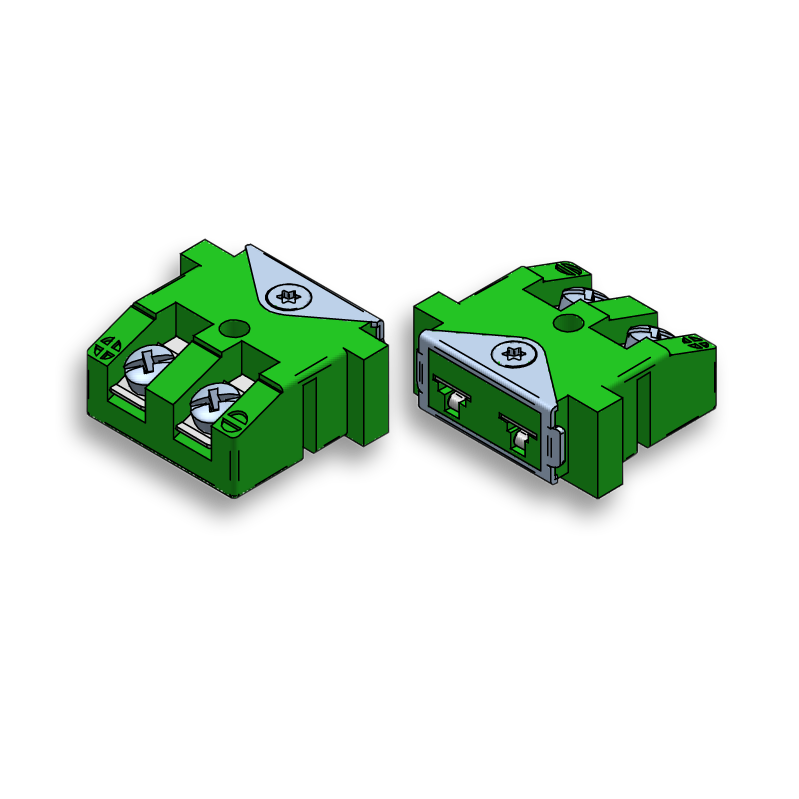

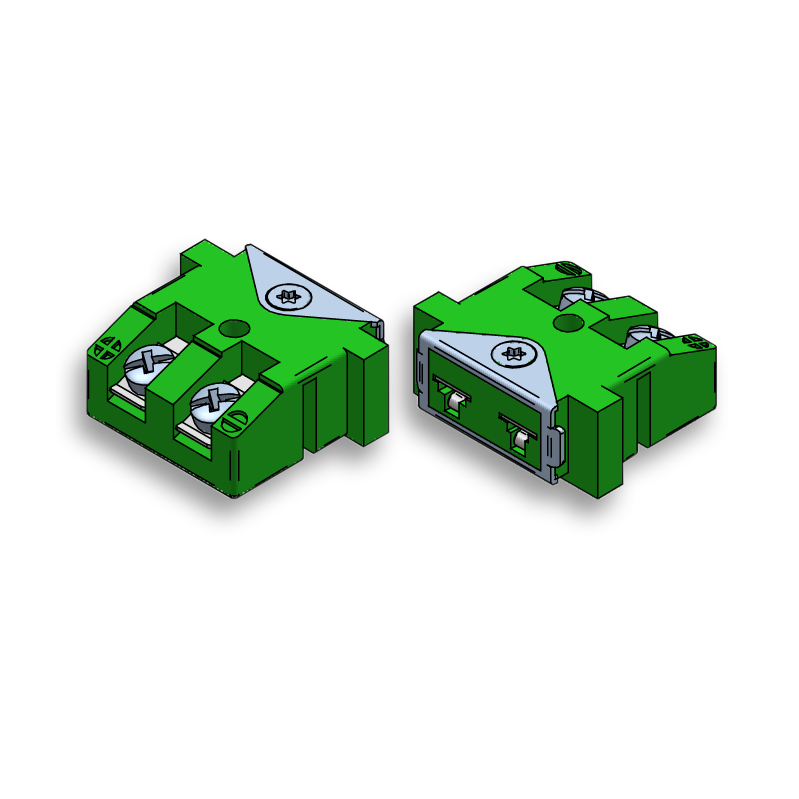

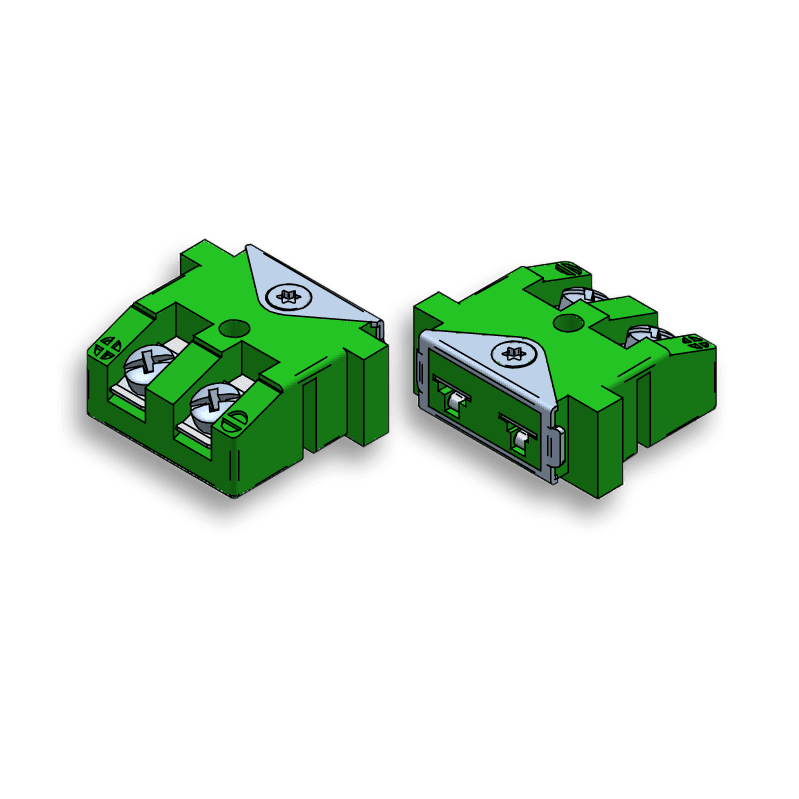

Mechanical design:
- Glass filled thermoplastic body with original thermocouple.
- Contacts of original thermocouple materials.
- Spring-loaded sockets.
- Polarized pins ensure proper connection
- Conductor guides for prevention of short-circuits.
- Screw terminals enable quick connection.
- Polarity designation next to the connection screws.

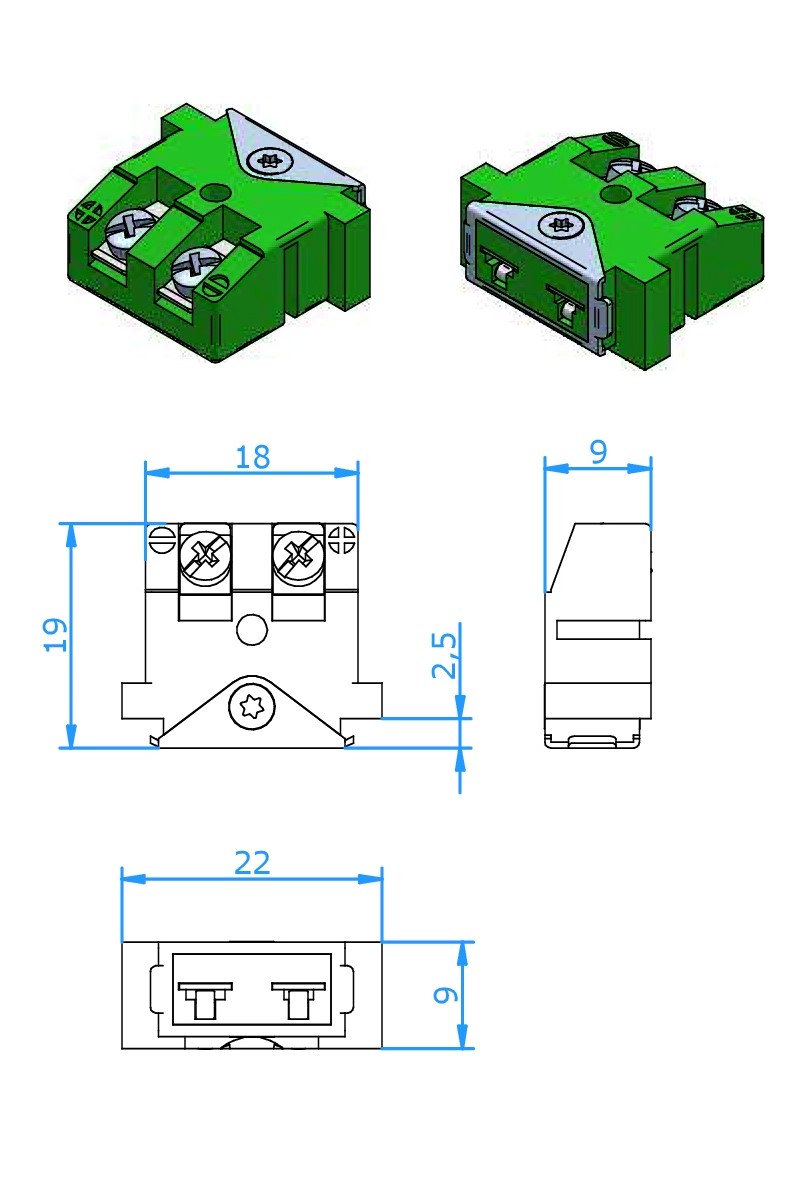

Panel cut-out:
- 8,1 x 16,1 mm; Panel thickness : 2,5 mm
- for locking mechanism a special cut-out is needed
Conductor diameter:
- Accepts wires up to 0,6 mm.
Temperature load:
- Max. +220 °C.
Available types:
- online available: Type K, J, E, N, T, U, R/S, B
- on request: Type C
Colour designations:
- All international colour designations are available:
DIN IEC, DIN 43710, ANSI, NFE, BS, JIS, etc.
Material-Code:
Discount on large quantities on request
