Use:

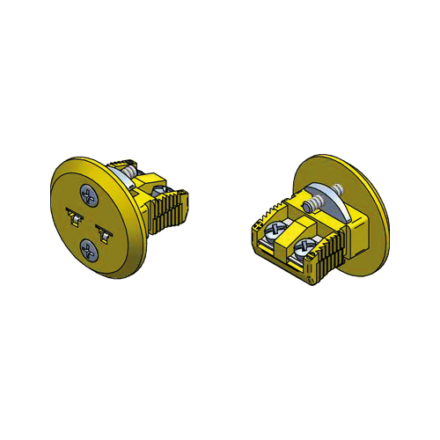

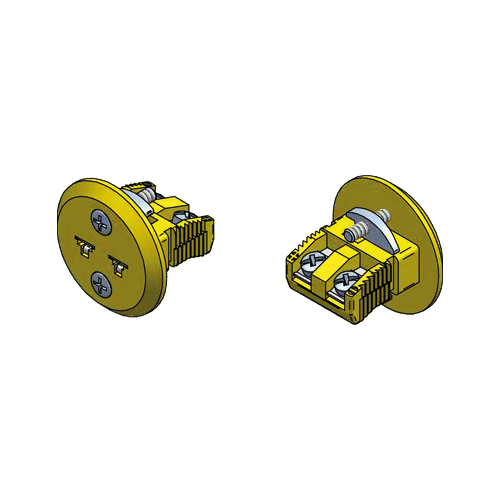

Panel insert for thermocouple and RTD circuits. Mounting by means of two screws at front hole with a diameter of 22.5 mm. Ideal panelinsert for instrument cases.
Mechanical design:
- Glass filled thermoplastic body
- Contacts of original thermocouple materials.
- Spring-loaded sockets.
- Reverse polarity protection by different contact pin widths.
- Moulded barriers prevent short-circuits.
- Screw terminals enable quick connection.
- Polarity indication on body.
- Stainless steel screws and brackets for front mounting.

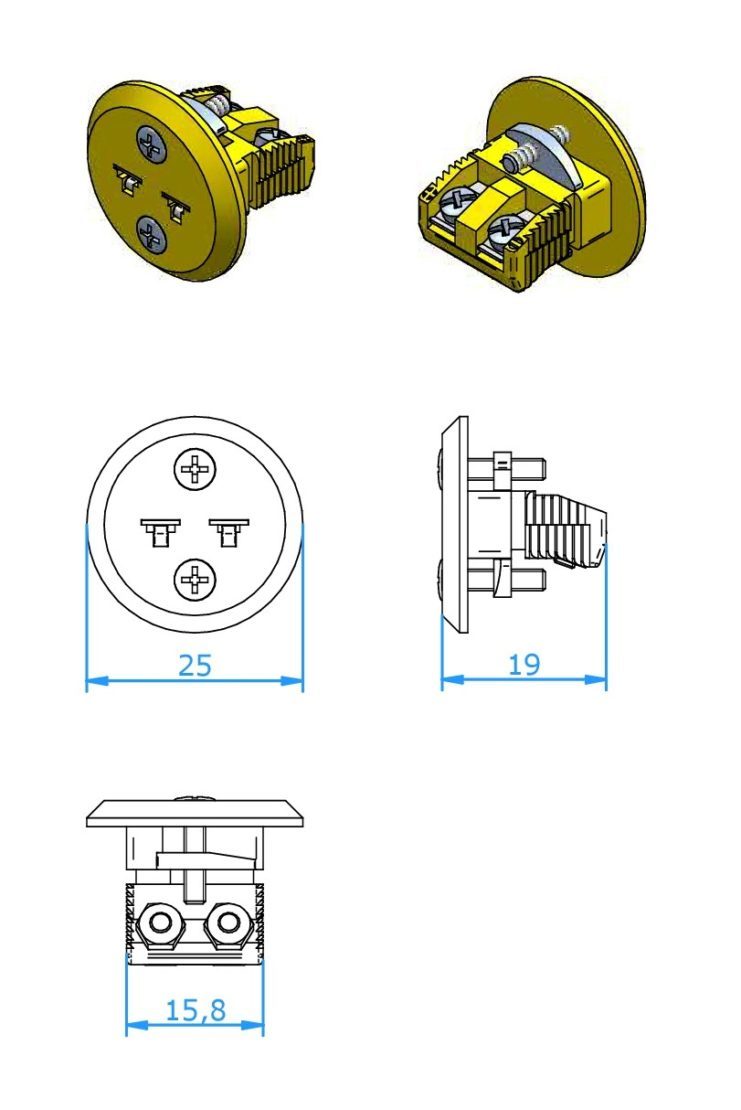

Panel cut-out:
- Ø17,5mm
Conductor diameter:
- Accepts wires up to 0,6 mm.
Temperature load:
- Max. +220 °C.
Available types:
- online available: Type K, J, E, N, T, U, R/S, B
- on request: Type C
Colour designations:
- Available in all color code standards. Incl. NFE, BS, JIS, etc.
Material-Code:
Discount on large quantities on request
