Use:

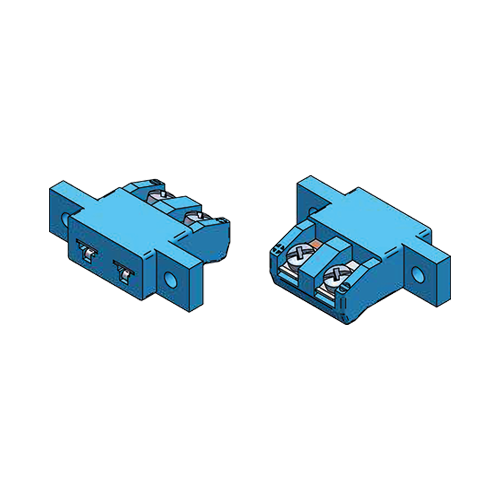

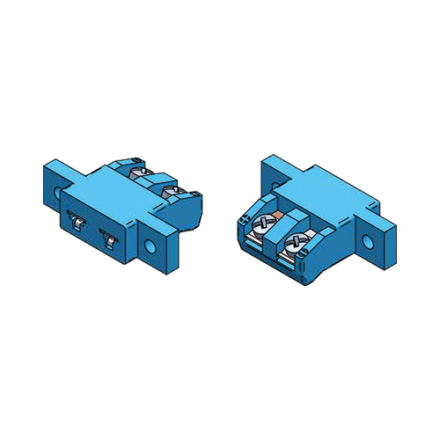

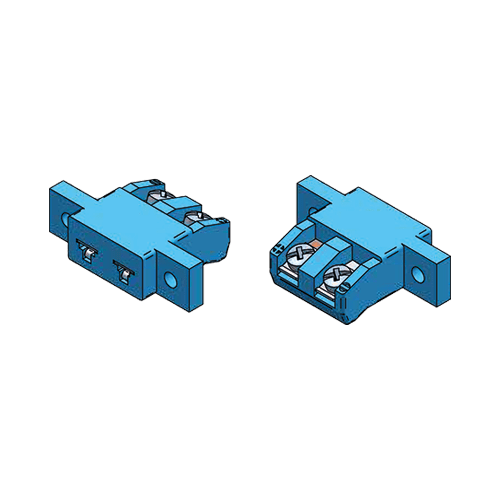

Single built-in sockets for installation in front plates, measuring device housings, etc.
Attachment with two screws M 2.5.
Mechanical design:
- Glass filled thermoplastic body
- Contacts of original thermocouple materials.
- Spring-loaded sockets.
- Reverse polarity protection by different contact pin widths.
- Moulded barriers prevent short-circuits.
- Screw terminals enable quick connection.
- Polarity indication on body.

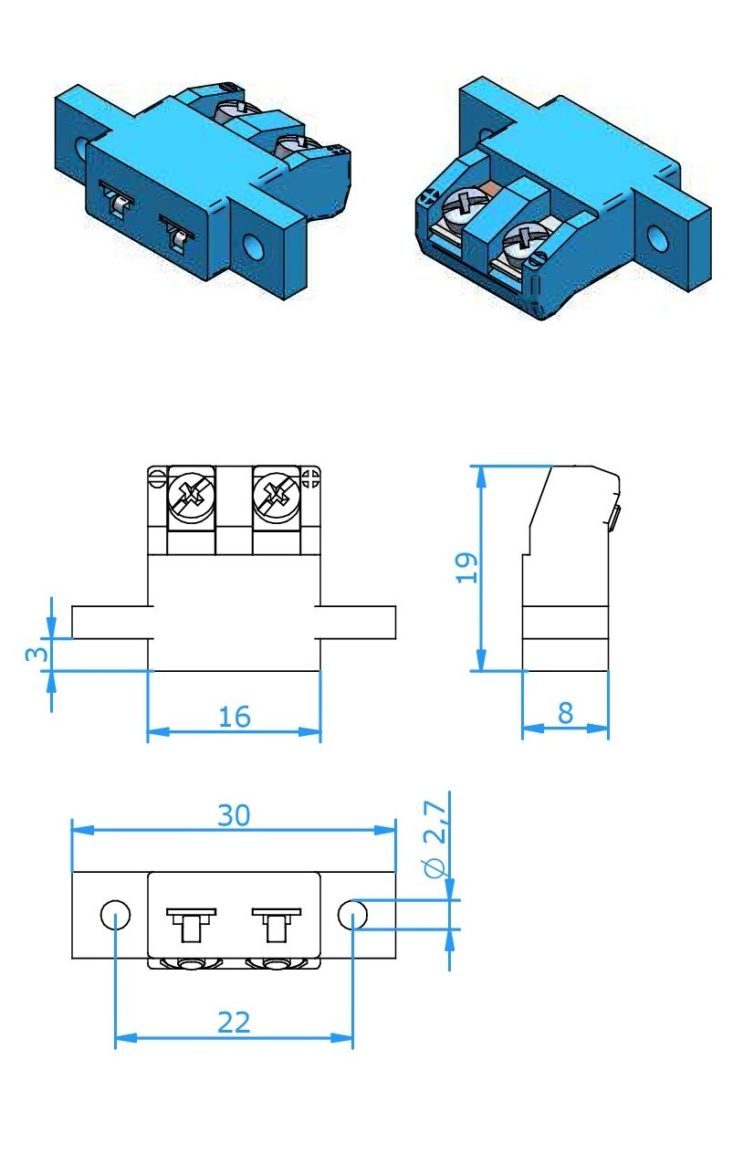

Panel cut-out:
- 8,1 x 16,1 mm; Panel thickness : 3,0 mm
Conductor diameter:
- Accepts wires up to 0,6 mm.
Temperature load:
- Max. +220 °C.
Available types:
- online available: Type K, J, E, N, T, U, R/S, B
- on request: Type C
Colour designations:
- All international colour designations are available:
DIN IEC, DIN 43710, ANSI, NFE, BS, JIS, etc.
Material-Code:
Discount on large quantities on request
