Use:

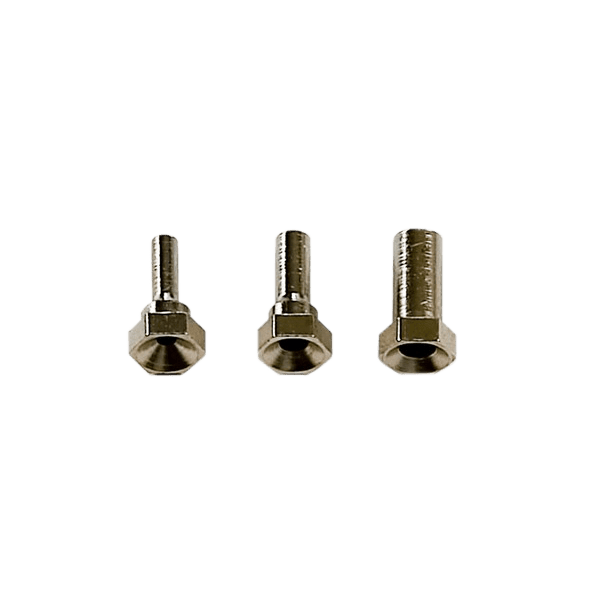

Designed for soldering or crimping on mineral insulated sheath cable or crimping on insulated wire.
Construction:
- Brass machined, nickel plated insert with 0.1 mm tolerance on the cable OD.
- The adapter fits in all miniature connectors.
Material:
- brass, nickel plated
Order no.
| Code | A (mm) | B (mm) |
|---|---|---|
| 20.024-1 | 1,10 | 2,40 |
| 20.024-2 | 1,60 | 2,40 |
| 20.024-3 | 1,70 | 2,40 |
| 20.024-4 | 2,10 | 3,20 |
| 20.024-5 | 2,40 | 3,20 |
| 20.024-6 | 3,10 | 4,50 |
| 20.024-7 | 3,30 | 4,50 |
| 20.024-8 | 0,00 | 4,50 |
| 20.024-9 | 3,90 | 4,50 |
| 20.024-10 | 2,80 | 4,50 |
| 20.024-11 | 2,70 | 4,50 |
| 20.024-12 | 1,90 | 3,20 |
| 20.024-13 | 3,50 | 4,50 |
| 20.024-14 | 0,90 | 2,40 |
| 20.024-15 | 3,80 | 4,50 |
| 20.051-1 | 5,0 | 5,8 |
| 20.225 | 0,6 | 2,4 |
Tool:
Discount on large quantities on request
