Wire RTD | Ni120

Resistance: Ni120
Circuit type: 2-wire technology
Measurement range: -50 °C to +260 °C

Title	Range	Discount
Rabattstaffel 1	6 - 10	5% 17,48 €
Rabattstaffel 2	11 - 20	10% 16,56 €
Rabattstaffel 3	21 +	15% 15,64 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description
Additional information

Description

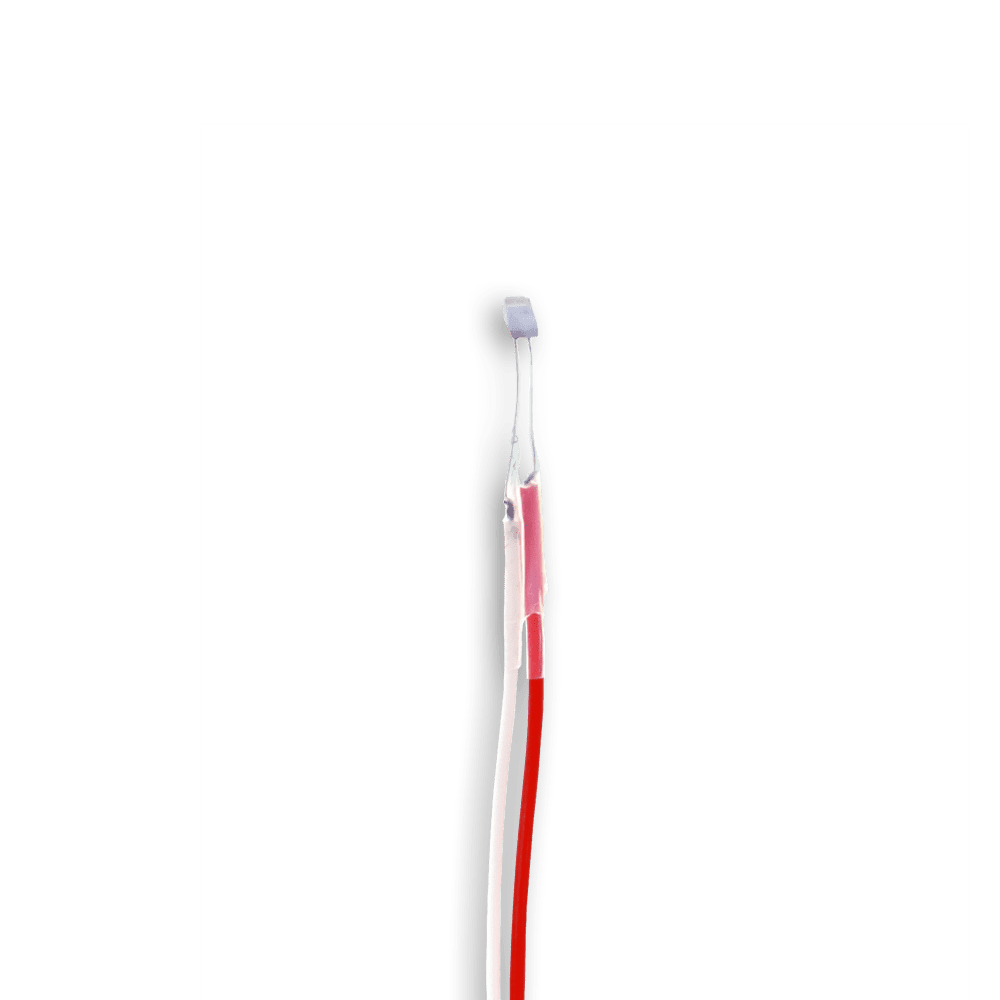

Inline resistance thermometer Ni120

Technical data

Measurement range: -50 °C to +260 °C
Electrical resistance: 120 Ω at 0°C (±0,28Ω)
Temperature coefficient: ANSI, 6720 ppm/K (+0/-75 ppm/K)
Circuit type: 2-wire technology
Conductor:PTFE-Teflon
Conductor guide: open
Conductor:Strand, Cuvs, AWG 24F, 2 x 0.22 mm² (19 x 0.127 mm)
Strand colour:white, red
Wire length: 500–5,000 mm
Type of connection: Selection
Measuring current: recommended 0,3mA, maximum 1 mA
R ISO / 1000VDC: >200 MOhm

For protection the RTD is standardly covered with a PTFE-isolation.

Discount on large quantities on request

Additional information

Weight	0,06 kg

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request

SKU: 360 Categories: Resistance thermometers, Wire resistance thermometer
