Wire RTD | Pt100

Resistance: Pt100
Circuit type: 2-wire technology
Measurement range: -70 °C to +260 °C

Title	Range	Discount
Rabattstaffel 1	6 - 10	5% 12,26 €
Rabattstaffel 2	11 - 20	10% 11,61 €
Rabattstaffel 3	21 +	15% 10,97 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description
Additional information

Description

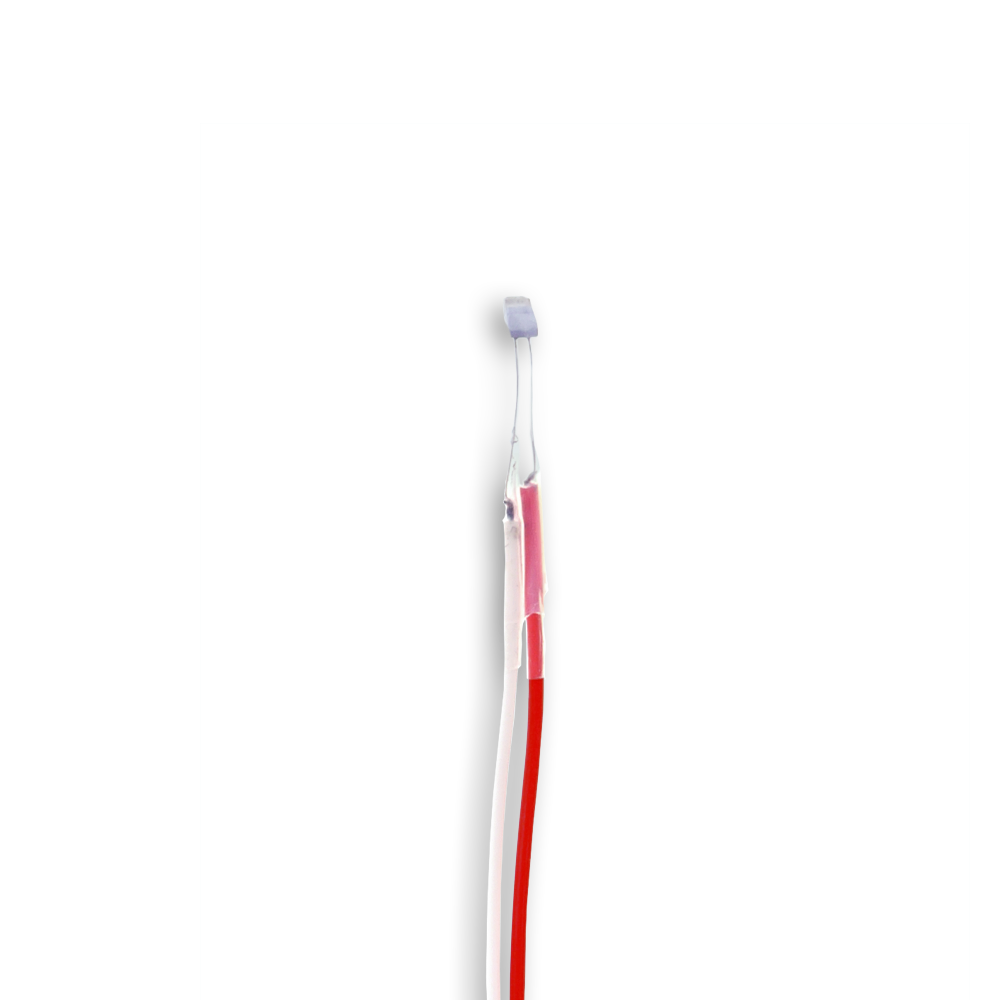

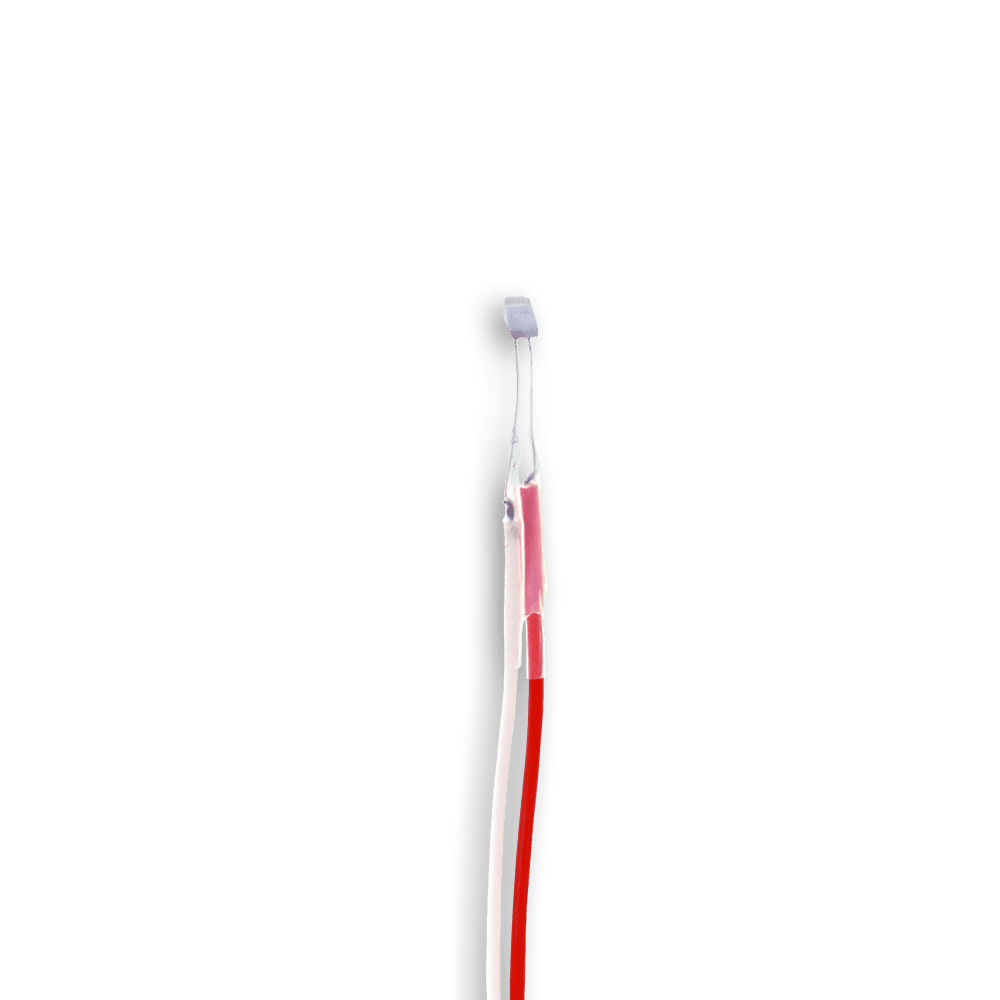

Inline resistance thermometer Pt100

Technical data

Measurement range: -70 °C to +260 °C
Electrical resistance: Pt100
Tolerance:B / A or AA as per DIN EN 60751:2009-05
Circuit type: 2-wire technology
Conductor:PTFE-Teflon
Conductor guide: open
Conductor:Strand, Cuvs, AWG 24F, 2 x 0.22 mm² (19 x 0.127 mm)
Strand colour:white, red
Wire length: 500–5,000 mm
Type of connection: Selection
R ISO / 1000VDC: >200 MOhm
Measuring current: recommended 1,0mA, maximum 7 mA

For protection the RTD is standardly covered with a PTFE-isolation.

Class	range of validity [°C]	Limiting deviation [°C]
AA	-50 bis +200	±(0,1 + 0,0017\|t\|)
A	-70 bis +300	±(0,15 + 0,002\|t\|)
B	-70 bis +550	±(0,3 + 0,005\|t\|)

Discount on large quantities on request

Additional information

Weight	0,06 kg

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request

SKU: 216 Categories: Resistance thermometers, Wire resistance thermometer
