Standard | Ni120

Resistance: Ni120
Circuit type: 2-wire technology
Measurement range: -50 °C to +260 °C

Title	Range	Discount
Rabattstaffel 1	6 - 10	5% 18,43 €
Rabattstaffel 2	11 - 20	10% 17,46 €
Rabattstaffel 3	21 +	15% 16,49 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description
Additional information

Description

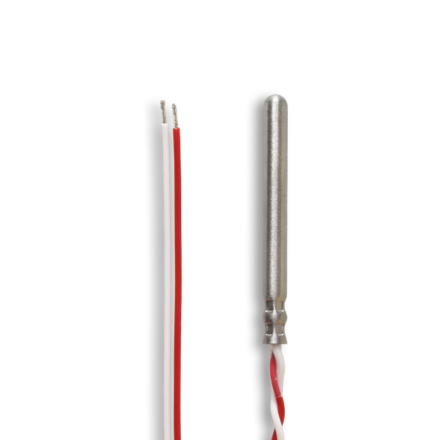

Standard resistance thermometer Ni120

Technical data

Measurement range: -50 °C to +260 °C
Electrical resistance: 120 Ω at 0°C (±0,28Ω)
Temperature coefficient: ANSI, 6720 ppm/K (+0/-75 ppm/K)
Probe Ø: 3.0–4.0 mm
Probe length: 30–100 mm
Conductor:PTFE-Teflon
Cable guide: open
Conductor:Strand, Cuvs, AWG 24F, 2 x 0.241 mm² (19 x 0.127)
Strand colour:white, red
Wire length: 500–5,000 mm
Type of connection: Selection
Measuring current: recommended 0,3mA, maximum 1 mA
R ISO / 500-1000VDC: >200 MOhm

Discount on large quantities on request

Additional information

Weight	0,08 kg

Your advantages with us for over 30 years

Entire production made in Germany (handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Further scale of discounts on request

SKU: 344 Categories: Resistance thermometers, Sheating tube resistance thermometer, Water temperature sensor
