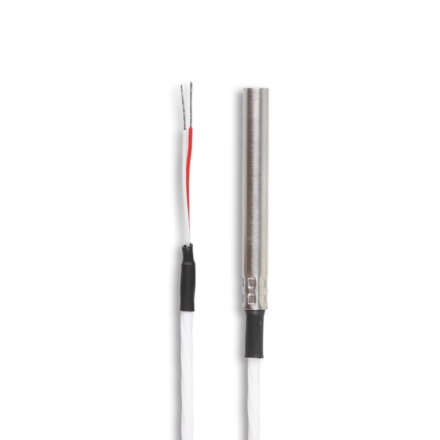

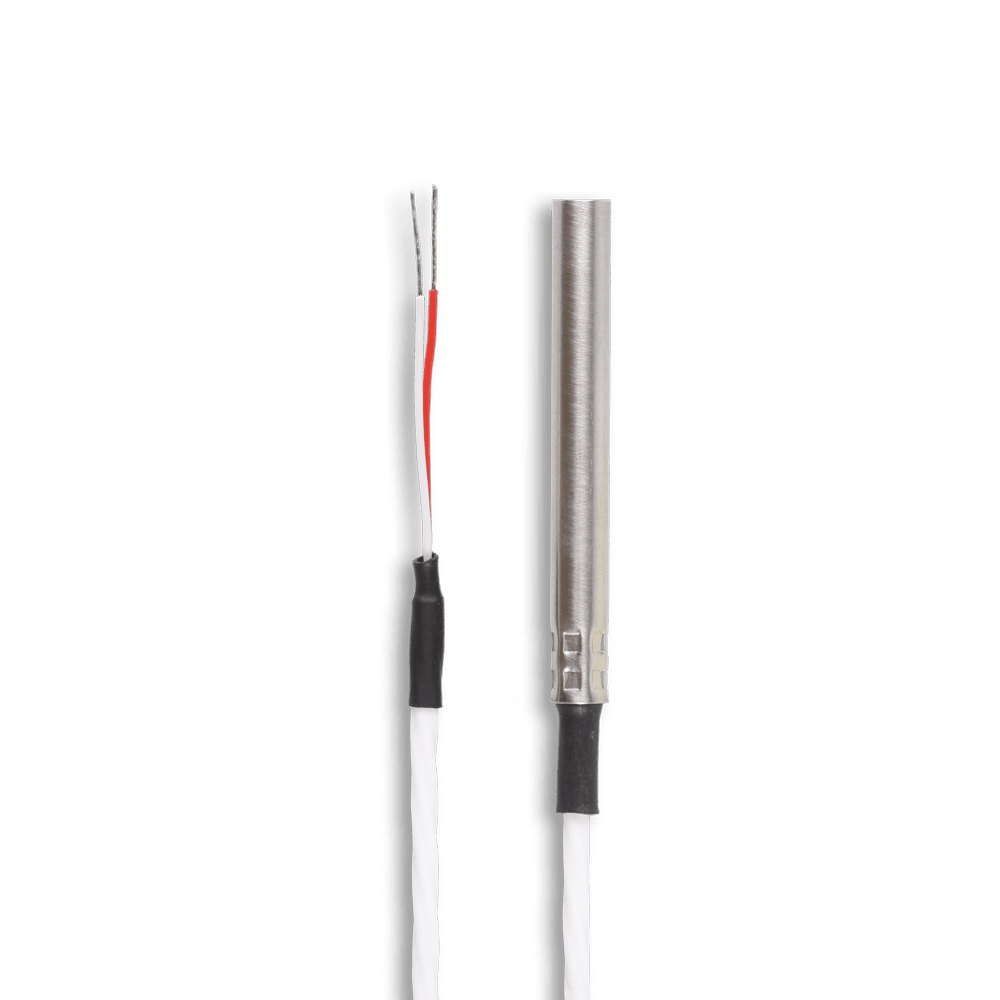

Sheathing tube resistance thermometer Pt1000
- Rigid sheath design
Technical data
- Measurement range: -50 °C to +260 °C
- Electrical resistance: Pt1000
- Tolerance:B / A or AA as per DIN EN 60751:2009-05
- Circuit type:2, 3 or 4-wire technique
- Sheathing material: Stainless Steel
- Probe Ø: 4.0–8.0 mm
- Probe length: 30–300 mm
- Conductor: PFA-Teflon with Cu shielding
- Conductor insulation: Teflon
- Conductor:Strand, Cuvn, AWG 26F (0.14 mm², 7 x 0.16 mm)
- Strand colour:white, red
- Wire length: 500–5,000 mm
- Type of connection: Selection
- Measuring current: recommended 0,1mA, maximum 1 mA
- R ISO / 1000VDC: >200 MOhm
Class | range of validity [°C] | Limiting deviation [°C] |
| AA | -50 bis +200 | ±(0,1 + 0,0017|t|) |
| A | -70 bis +300 | ±(0,15 + 0,002|t|) |
| B | -70 bis +400 | ±(0,3 + 0,005|t|) |
Discount on large quantities on request
