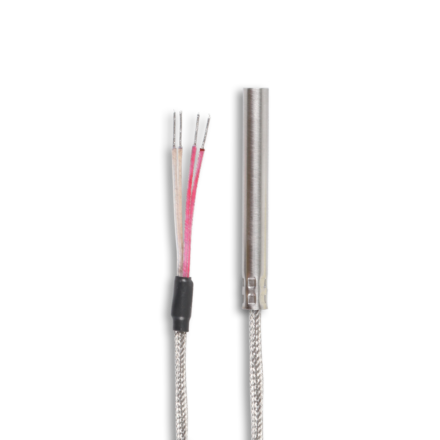

Sheathing tube | Fibreglass | NTC 10 kOhm

Resistance: NTC 10 kOhm
Temperature range: -50 °C to +300 °C
Wire type: Fibreglass with VA braid, Tmax: +450 °C

Resistance *

Diameter *

Element length *

Wire length *

Connector *

Title	Range	Discount
Rabattstaffel 1	6 - 10	5% 23,80 €
Rabattstaffel 2	11 - 20	10% 22,55 €
Rabattstaffel 3	21 +	15% 21,29 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description
Additional information

Description

Sheathing tube resistance thermometer NTC 10 kOhm

Rigid sheath design

Technical data

Measurement range: -50 °C to +300 °C
Electrical resistance: NTC 10 kOhm
Circuit type: 2-wire technique
Sheathing material: Stainless Steel
Probe Ø: 4.0–8.0 mm
Probe length: 40–300 mm
Conductor: Fibreglass with VA braid
Conductor insulation: Fibreglass
Conductor:Strand, Cuvn, AWG 26F (0.14 mm², 7 x 0.16 mm)
Strand colour:white, red
Wire length: 500–5,000 mm
Type of connection: Selection
R ISO / 1000VDC: >200 MOhm

Download table of resistance/temperature as PDF

Discount on large quantities on request

Additional information

Weight	0,18 kg

Your advantages with us for over 30 years

Entire production made in Germany (handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Further scale of discounts on request

SKU: 406 Categories: Resistance thermometers, Sheating tube resistance thermometer
