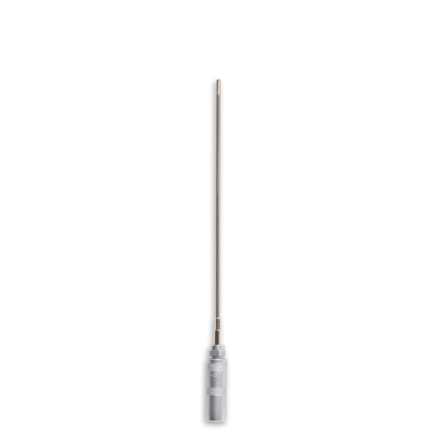

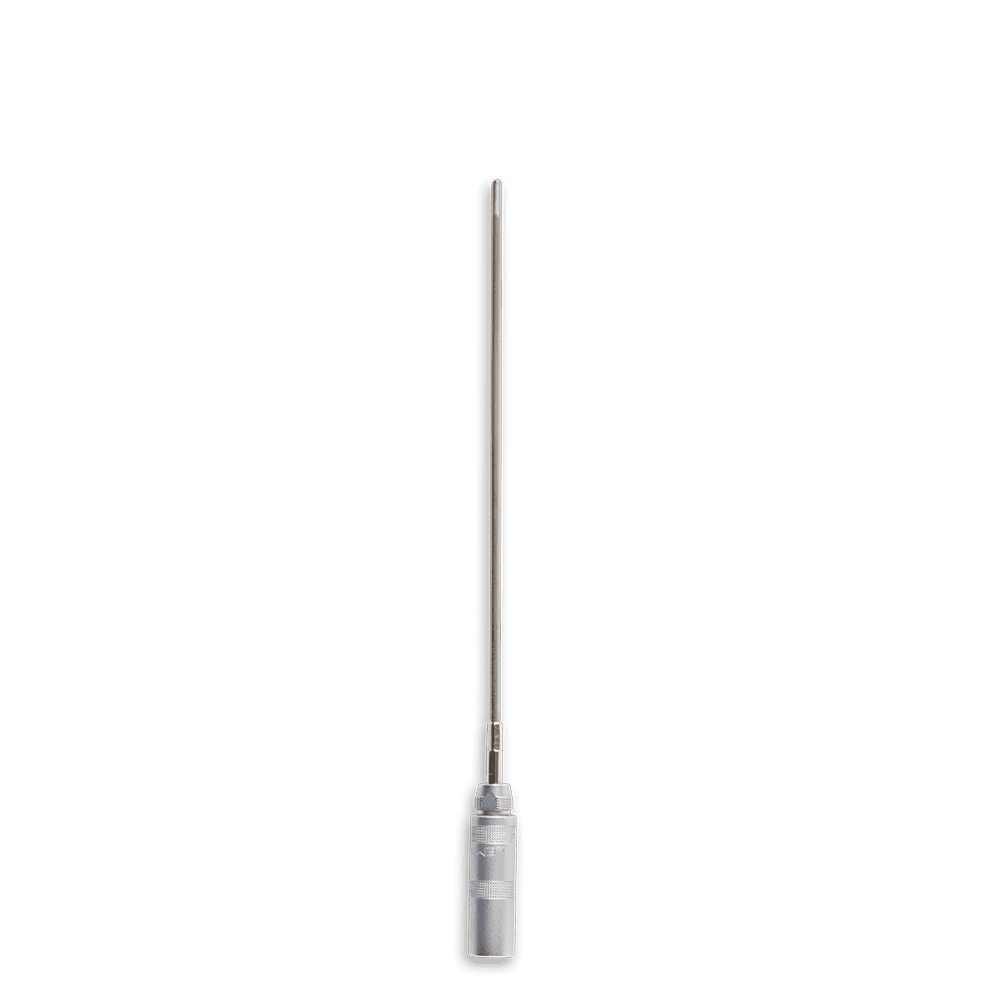

Sheathing resistance thermometer NTC 10 kOhm
Resistance thermometer with bendable sheathing construction. The protection metallic sheath offers the possibility to integrate the probe into rough environments. The measuring tip can be integrated in very tight and deep installations spaces. For the attachment of the resistance thermometer a compression fitting can be used. The first 10 mm of the probe is the temperature sensitive area. The sheath must not be bend at a length of the first 30mm to avoid damage the resistance.
Technical data
- Measurement range: -50 °C to +300 °C
- Electrical resistance: NTC 10 kOhm
- Circuit type: 2-wire technique
- Probe Ø: 2.0 or 3.0 mm
- Probe length: 50–1,000 mm
- Sheathing material: 1.4541 (AISI321)
- Type of connection: Selection
- R ISO / 250VDC: >200 MOhm
Download table of resistance/temperature as PDF
Discount on large quantities on request
