Screw-in RTD | Fibreglass | NTC 10 kOhm

Resistance: NTC 10 kOhm
Thread: M6
Temperature range: -50 °C to +300 °C
Wire type: Fibreglass with VA braid, Tmax: +350 °C

Title	Range	Discount
Rabattstaffel 1	6 - 10	5% 35,25 €
Rabattstaffel 2	11 - 20	10% 33,39 €
Rabattstaffel 3	21 +	15% 31,54 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description
Additional information

Description

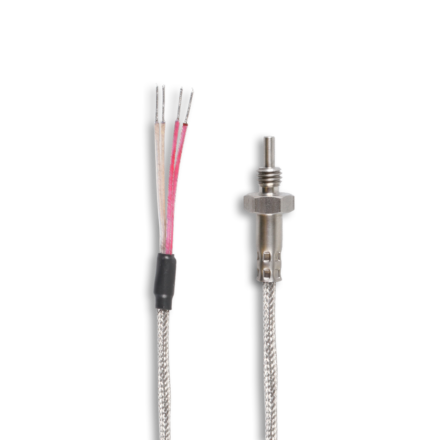

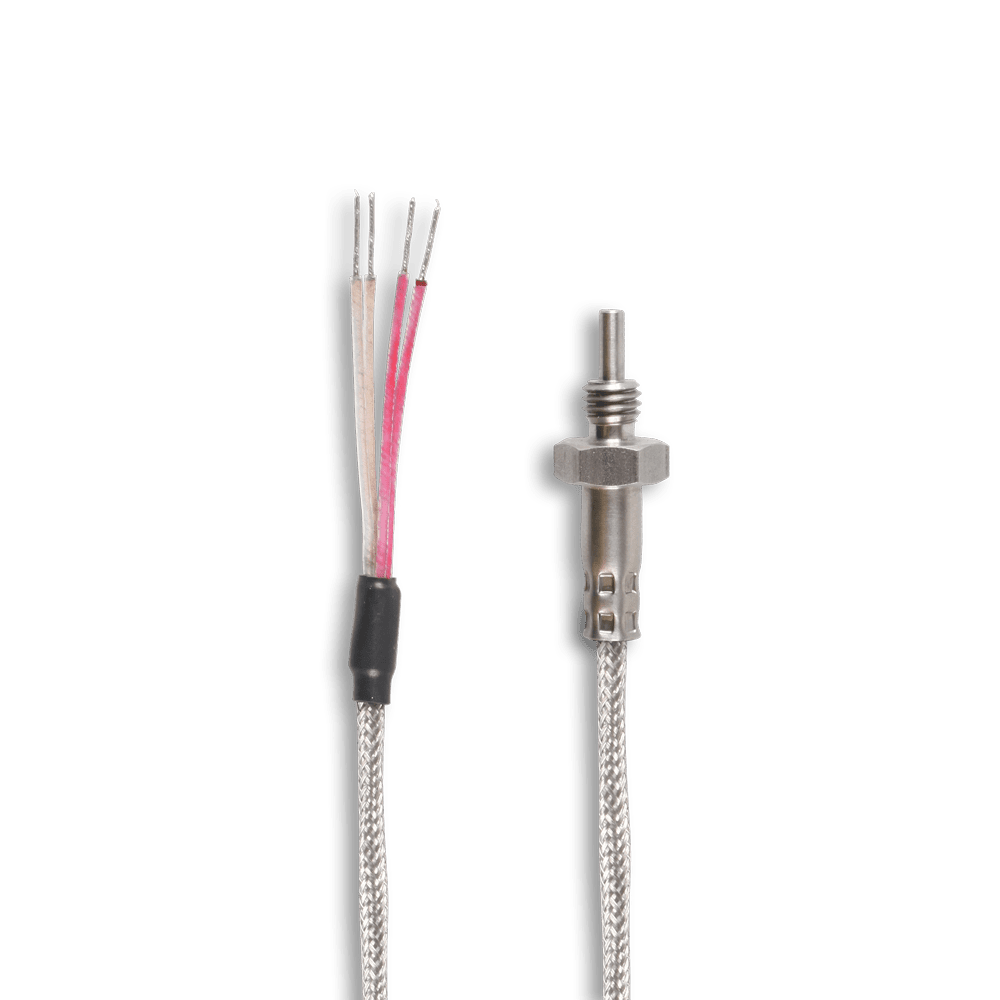

Screw-in resistance thermometer NTC 10 kOhm

Screw-in RTD for measurment of fluid or gas temperature, to use in plants, maschines or vehicles.

Technical data

Measurement range: -50 °C to +300 °C
Electrical resistance: NTC 10 kOhm
Circuit type: 2-wire technique
Sheathing material: Stainless Steel
Probe Ø: 2.5 x 7 mm
Installation length: 13 mm
Thread: M6
Conductor:Fibreglass with VA braid
Conductor insulation: Fibreglass
Conductor:Strand, Cuvn, AWG 26F (0.14 mm², 7 x 0.16 mm)
Strand colour:white, red
Wire length: 500–5,000 mm
Type of connection: Selection
R ISO / 500VDC: >200 MOhm

Download table of resistance/temperature as PDF

Discount on large quantities on request

Additional information

Weight	0,14 kg

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request

SKU: 402 Categories: Resistance thermometers, Screw-in resistance thermometer, Water temperature sensor
