Screw-in RTD | Fibreglass | Ni120

Resistance: Ni120
Thread: M6
Temperature range: -50 °C to +260 °C continuous
Wire type: Fibreglass with VA braid, Tmax: +350 °C

Title	Range	Discount
Rabattstaffel 1	6 - 10	5% 37,15 €
Rabattstaffel 2	11 - 20	10% 35,19 €
Rabattstaffel 3	21 +	15% 33,24 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description
Additional information

Description

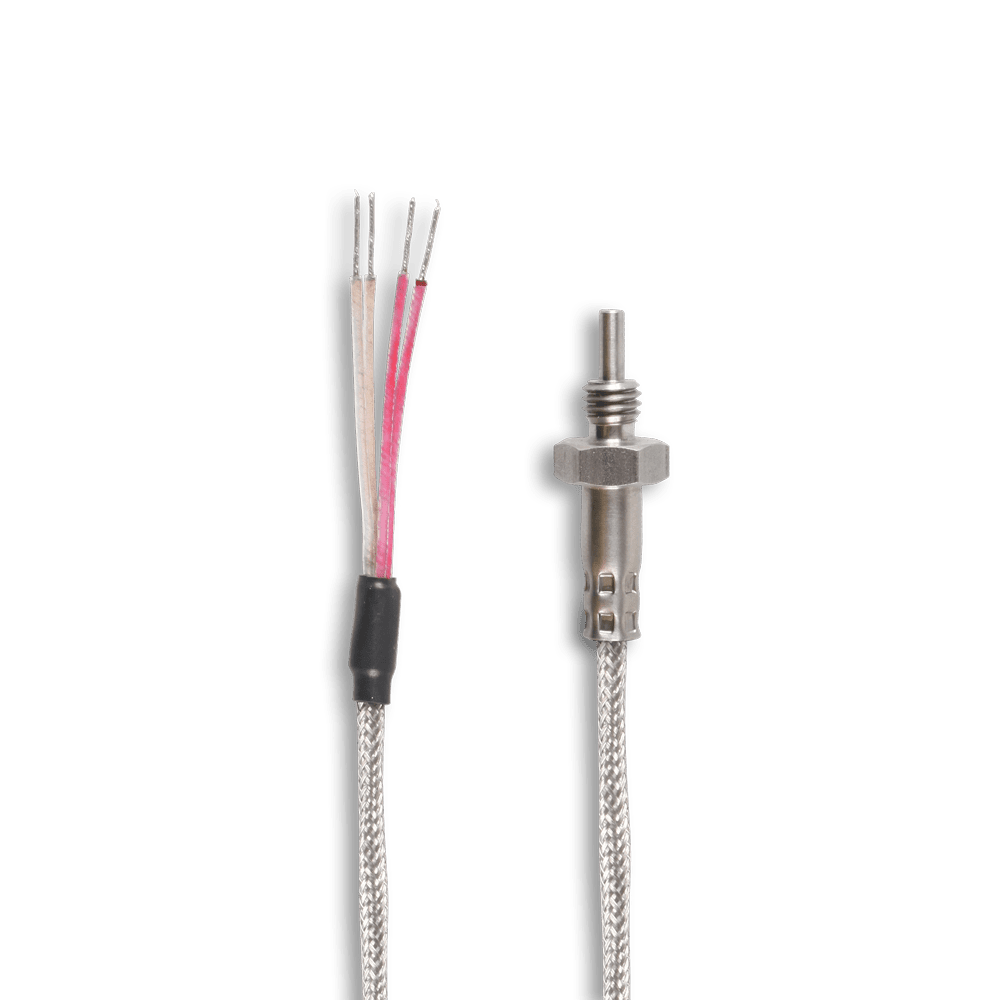

Screw-in resistance thermometer Ni120

Screw-in RTD for measurment of fluid or gas temperature, to use in plants, maschines or vehicles.

Technical data

Measurement range: -50 °C to +260 °C (short-time +300°C)
Electrical resistance: 120 Ω at 0°C (±0,28Ω)
Temperature coefficient: ANSI, 6720 ppm/K (+0/-75 ppm/K)
Sheathing material: Stainless Steel
Probe Ø: 2.5 x 7 mm
Installation length: 13 mm
Thread: M6
Conductor:Fibreglass with VA braid
Conductor insulation: Fibreglass
Conductor:Strand, Cuvn, AWG 26F (0.14 mm², 7 x 0.16 mm)
Strand colour:white, red
Wire length: 500–5,000 mm
Type of connection: Selection
Measuring current: recommended 0,3mA, maximum 1 mA
R ISO / 500VDC: >200 MOhm

Discount on large quantities on request

Additional information

Weight	0,14 kg

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request

SKU: 348 Categories: Resistance thermometers, Screw-in resistance thermometer, Water temperature sensor
