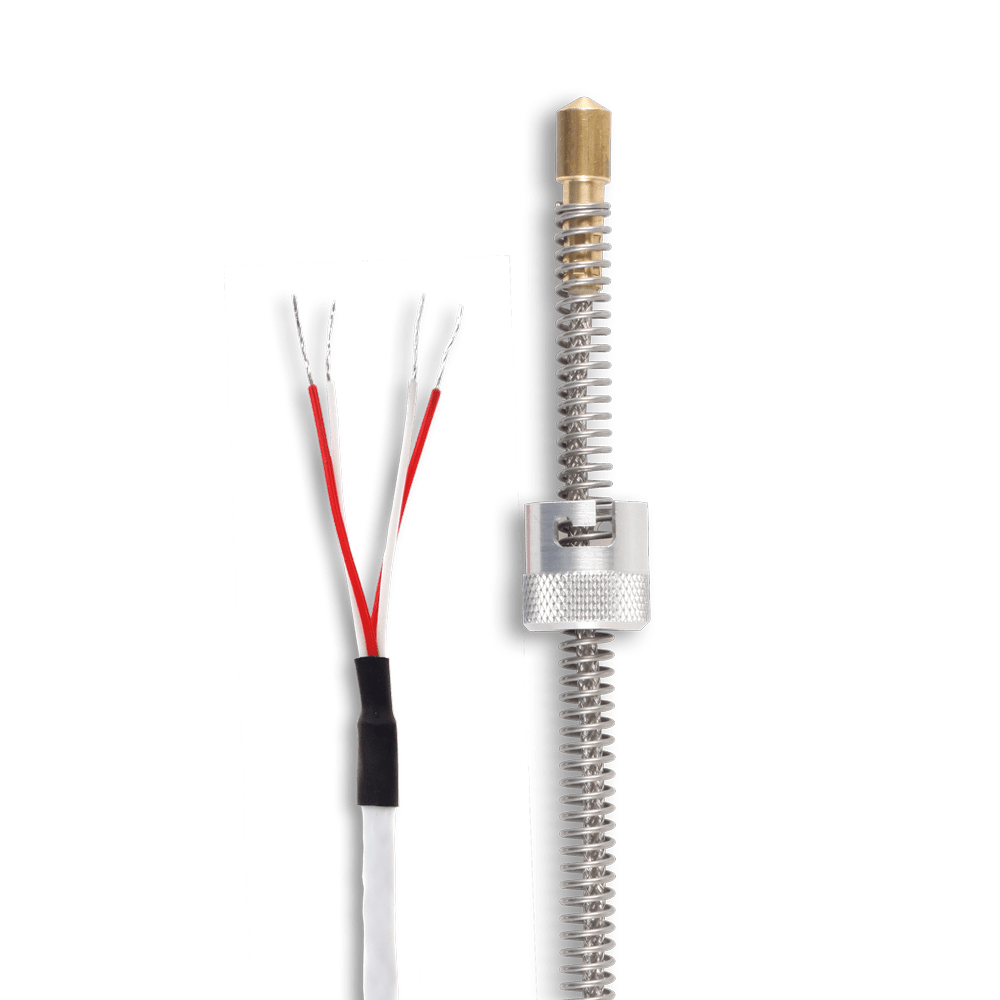

Plug-in resistance thermometer Pt100
Plug-in RTD for measurment bottom temperature of bore, to use in plants or maschines. Fast and easy assembly and disassembly of the probe with a bayonet cennection. The installation length can be adjusted by rotating the cap on the spring.
Technical data
- Measurement range: -50 °C to +260 °C
- Electrical resistance: Pt100
- Tolerance: B / A or AA as per DIN EN 60751:2009-05
- Circuit type: 2, 3 or 4-wire technique
- Probe housing: Brass, 118°C
- Probe Ø: 6.0 x 10 or 8.0 x 10 mm
- Bayonet cap: interior approx. Ø 12.5 mm or 14.5 mm
- Positioning range: along the spring approx. 180 mm
- Conductor: PFA-Teflon with CU shielding
- Conductor insulation: Teflon
- Conductor: Strand, Cuvn, AWG 26F (0.14 mm², 7 x 0.16 mm)
- Wire length: 500–5,000 mm
- Connection: Selection
- R ISO / 1000VDC: >200 MOhm
- Measuring current: recommended 1,0mA, maximum 7 mA
Recommended bore diameter 6.4mm or 8.4mm.
Class | range of validity [°C] | Limiting deviation [°C] |
| AA | -50 bis +200 | ±(0,1 + 0,0017|t|) |
| A | -70 bis +300 | ±(0,15 + 0,002|t|) |
| B | -70 bis +400 | ±(0,3 + 0,005|t|) |
Discount on large quantities on request
