Plug-in resistance thermometer | Teflon | NTC 10 kOhm

Resistance: NTC 10kOhm
Temperature range: -50 °C to +260 °C continuous
Wire type: Teflon with CU shielding, Tmax: +260 °C continuous

Diameter *

Wire length *

Connector *

Mounting adapter *

Title	Range	Discount
Rabattstaffel 1	6 - 10	5% 24,99 €
Rabattstaffel 2	11 - 20	10% 23,67 €
Rabattstaffel 3	21 +	15% 22,36 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description
Additional information

Description

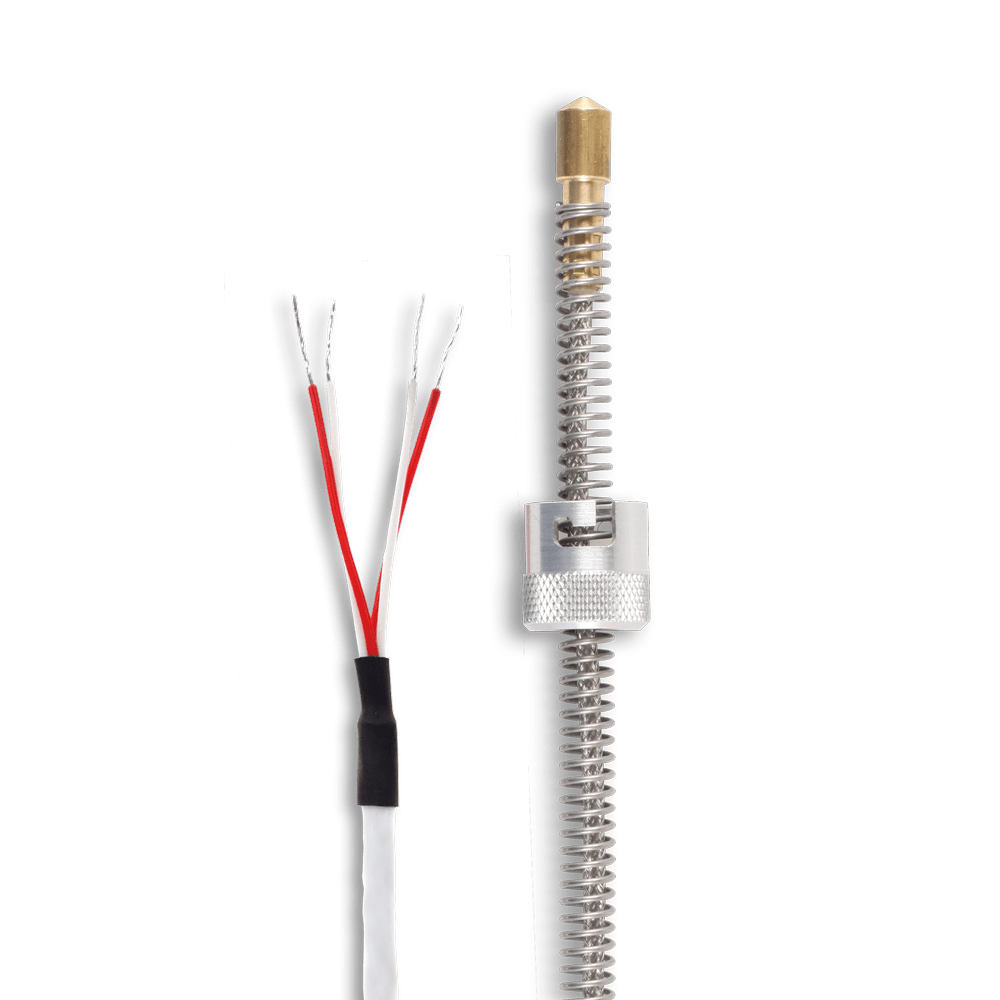

Plug-in resistance thermometer NTC 10 kOhm

Plug-in RTD for measurment bottom temperature of bore, to use in plants or maschines. Fast and easy assembly and disassembly of the probe with a bayonet cennection. The installation length can be adjusted by rotating the cap on the spring.

Technical data

Measurement range: -50 °C to +260 °C
Electrical resistance: NTC 10 kOhm
Circuit type: 2-wire technique
Probe housing: Brass, 118°
Probe Ø:6.0 x 10 or 8.0 x 10 mm
Bayonet cap:interior approx. Ø 12.5 mm or 14.5 mm
Positioning range:along the spring approx. 180 mm
Conductor:PFA-Teflon with CU shielding
Conductor insulation: Teflon
Conductor:Strand, Cuvn, AWG 26F (0.14 mm², 7 x 0.16 mm)
Wire length: 500–5,000 mm
Connection: Selection
R ISO / 1000VDC: >200 MOhm

Recommended bore diameter 6.4mm or 8.4mm.

Download table of resistance/temperature as PDF

Discount on large quantities on request

Additional information

Weight	0,2 kg

Your advantages with us for over 30 years

Entire production made in Germany (handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Further scale of discounts on request

SKU: 403 Categories: Resistance thermometers, Plug-in resistance thermometer
