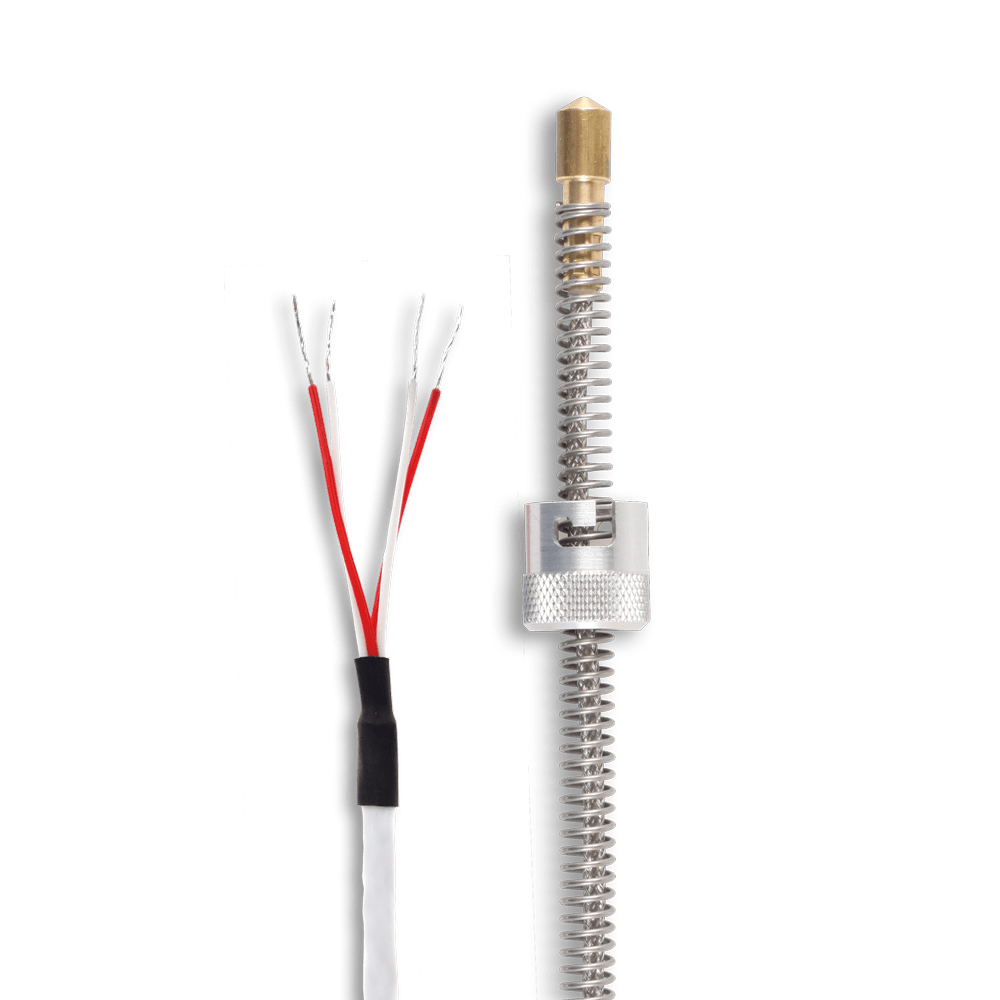

Plug-in resistance thermometer Ni120
Plug-in RTD for measurment bottom temperature of bore, to use in plants or maschines. Fast and easy assembly and disassembly of the probe with a bayonet cennection. The installation length can be adjusted by rotating the cap on the spring.
Technical data
- Measurement range: -50 °C to +260 °C
- Electrical resistance: 120 Ω at 0°C (±0,28Ω)
- Temperature coefficient: ANSI, 6720 ppm/K (+0/-75 ppm/K)
- Circuit type:2, 3 or 4-wire technique
- Probe housing: Brass, 118°
- Probe Ø:6.0 x 10 or 8.0 x 10 mm
- Bayonet cap:interior approx. Ø 12.5 mm or 14.5 mm
- Positioning range:along the spring approx. 180 mm
- Conductor:PFA-Teflon with CU shielding
- Conductor insulation: Teflon
- Conductor:Strand, Cuvn, AWG 26F (0.14 mm², 7 x 0.16 mm)
- Wire length: 500–5,000 mm
- Connection: Selection
- Measuring current: recommended 0,3mA, maximum 1 mA
- R ISO / 1000VDC: >200 MOhm
Recommended bore diameter 6.4mm or 8.4mm.
Discount on large quantities on request
