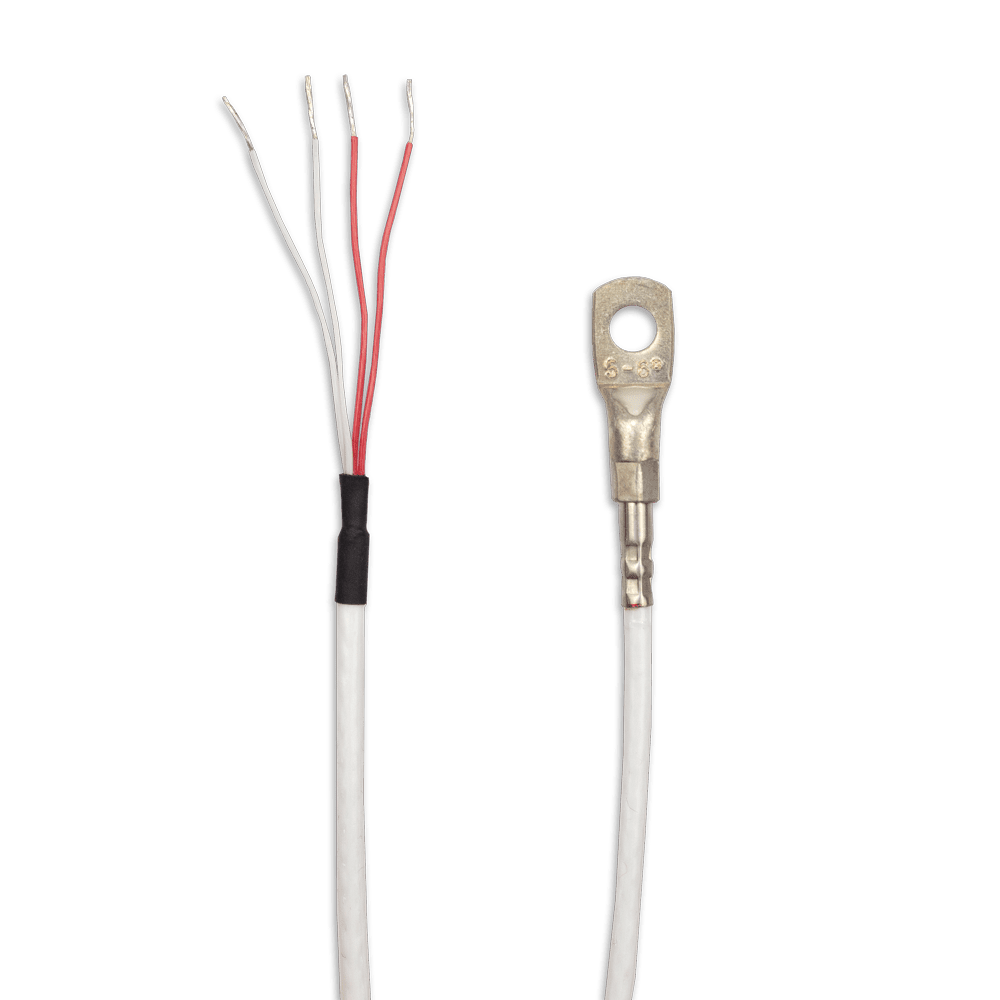

Cable lug resistance thermometer Pt100
Resistance thermometer with a measuring point in the cable lug are suitable for measuring a surface temperature. The ruggedly constructed housing made of tin-plated copper has a high thermoconductivity therefore the probe is well-suited to measure the surface temperature on metal parts. The probe will be mounted with a srew on the surface. The size of the hole can be choosen between M4 and M4. Additionally the housing protects the RTD against mechanical damage, as a result the probe is reusable.
Technical data
- Measurement range: -50 °C to +260 °C
- Electrical resistance: Pt100
- Tolerance:B / A or AA as per DIN EN 60751:2009-05
- Circuit type:2, 3 or 4-wire technique
- Housing: copper, tin-plated
- Conductor: PFA-Teflon with Cu shielding
- Conductor insulation: Teflon
- Conductor:Strand, Cuvn, AWG 26F (0.14 mm², 7 x 0.16 mm)
- Strand colour: white, red
- Wire length: 500–5,000 mm
- Type of connection: Selection
- R ISO / 500VDC: >200 MOhm
- Measuring current: recommended 1,0mA, maximum 7 mA
Class | range of validity [°C] | Limiting deviation [°C] |
| AA | -50 bis +200 | ±(0,1 + 0,0017|t|) |
| A | -70 bis +300 | ±(0,15 + 0,002|t|) |
| B | -70 bis +400 | ±(0,3 + 0,005|t|) |
