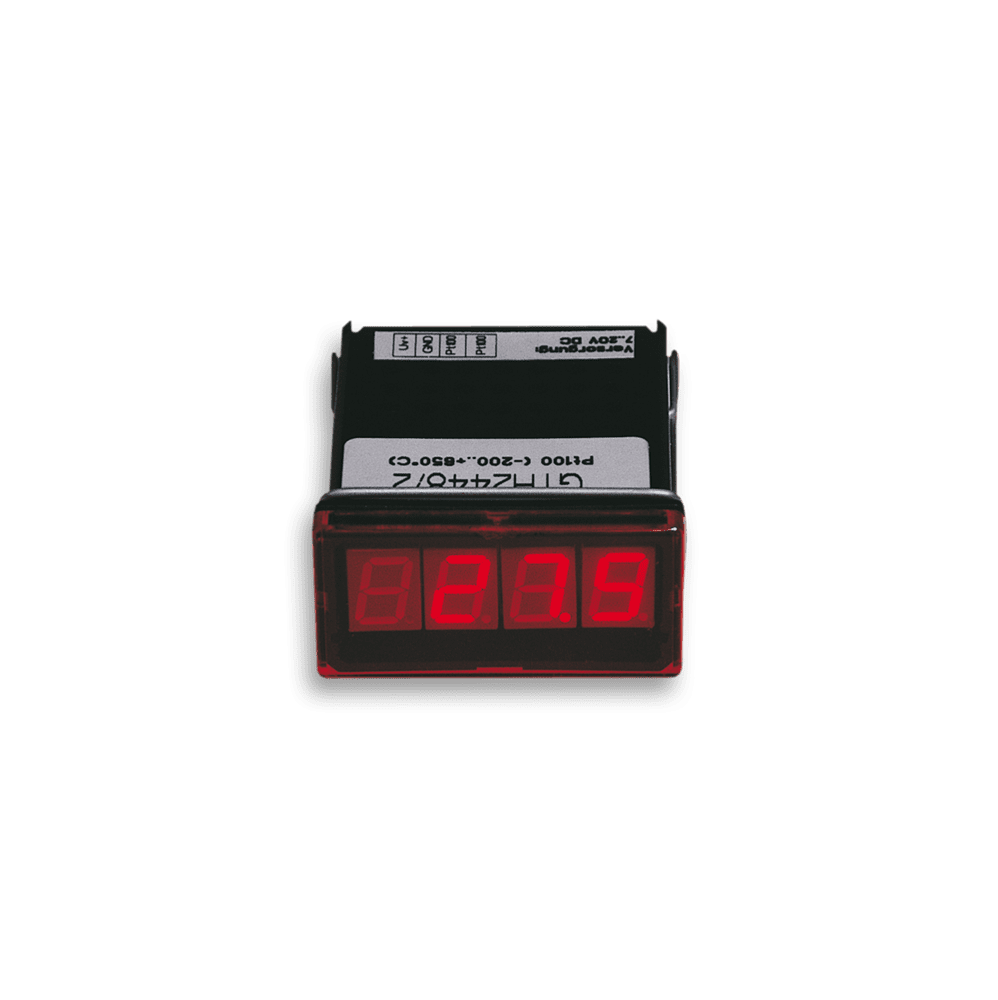

GTH 2448/1 – NiCr-Ni
GTH 2448/2 – Pt100, 1 °C
GTH 2448/3 – Pt100, 0.1 °C
GTH 2448/5 – Pt1000, 0.1 °C
Technical data:
Measurement range, resolution:
- GTH 2448/1: -50 to +1,150 °C (NiCr-Ni)
- GTH 2448/2: -200 to + 650 °C (Pt100, 2-conductor)
- GTH 2448/3: -60.0 to +199.9 °C (Pt100, 2-conductor)
- GTH 2448/5: -60.0 to +199.9 °C (Pt1000, 2-conductor)
Precision: (at nominal temperature = 25 °C)
- NiCr-Ni: ±1% ±1 digit (from -20 to +550 °C or 920 to 1,150 °C)
- NiCr-Ni: ±1.5% ±1 digit (from 550 to 920 °C)
- Pt100, Pt1000: ±0.5 °C ±1 digit or ±1 °C ±1 digit
Offset adjustment: (only with Pt100 and Pt1000)
- The sensor”s zero offset (e.g., caused by a long cable) can be adjusted with the aid of the offset trimmer on the rear of the device.
Additional technical details:
- Display: 3½-digit, red, 10 mm high LED display.
- Sampling frequency: approx. 3 measurements / sec.
- Operating temperature: 0 to 50 °C (permissible ambient temperature)
- Relative humidity: 5 to 95% r.h. (non-condensing)
- Storage temperature: -20 to 70 °C
- Power supply: 8–20 V DC or 18–29 V DC (standard) (can be set with a solder joint)
- Current consumption: max. 20 mA
- Housing: Glass-fibre reinforced Noryl, front panel PC.
- Dimensions: 24 x 48 mm (H x W) (front frame dimension)
- Installation depth: approx. 65 mm (incl. screw/plug terminals)
- Panel attachment: with VA spring clip.
- Possible panel thicknesses: from 1 to approx. 10 mm
- Panel cut-out: 21.7+0.5 x 45+0.5 mm (H x W).
- Connection terminals: 4-pin screw/plug terminal
- For conductor cross-sections of 0.14 to 1.5 mm²
- Protection class: front IP54 (with optional O-rings, IP65).
