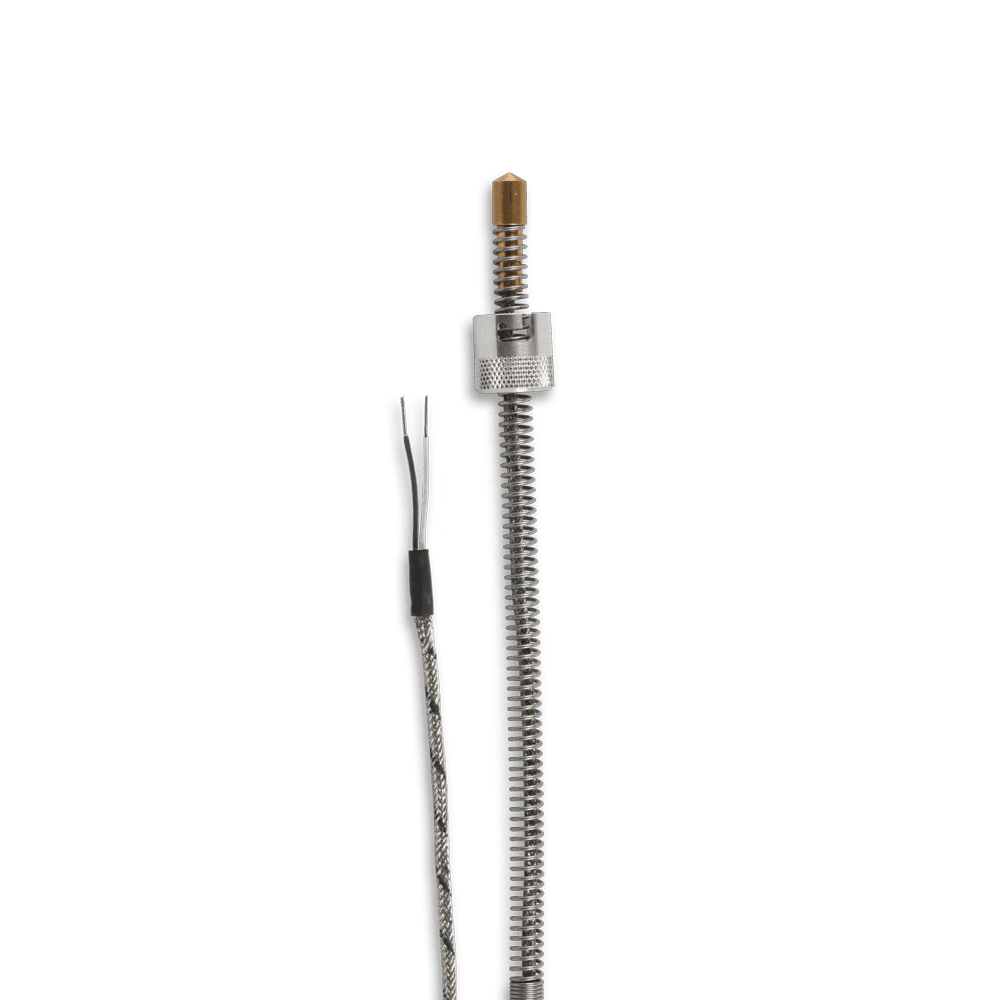

Plug-in thermocouple | Fibreglass | Type J

Thermocouple pairing: Type J, Cl. 1
Temperature range: -100 °C to +450 °C continuous
Wire type: Fibreglass with VA braid, Tmax: +450 °C continuous

Diameter *

Wire length *

Connector *

Mounting adapter *

Title	Range	Discount
Discount scale 1	3 - 9	3% 18,84 €
Discount scale 2	10 - 24	5% 18,45 €
Discount scale 3	25 +	10% 17,48 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description

Plug-in thermocouple Type J

Temperature range: -100 °C to +450 °C continuous
Wire type: Fibreglass with VA braid, Tmax: +450 °C continuous

Technical data

Thermocouple pairing: Type J
Limiting deviation:Cl. 1 as per DIN EN 60584-1: 2014-07
Measuring point: insulated
Probe housing: Brass
Probe Ø:6.0 x 10 or 8.0 x 10 mm
Bayonet cap:interior approx. Ø 12.5 mm or 14.5 mm
Positioning range:along the spring approx. 180 mm
Conductor:Fibreglass with VA braid
Conductor insulation: Fibreglass
Conductor: AWG 24F (2 x 0.22 mm²)
Wire length: 500–5,000 mm
Connection: Selection
R ISO / 500VDC : >200 MOhm

Recommended bore diameter 6.4mm or 8.4mm.

Discount on large quantities on request

Additional information

Weight	0,17 kg

Individual product inquiry

Do you need a similar product or have a special product request?

We would be happy to help you find the best solution for any quantity with our personal advice and individual production. Please use the product inquiry form below:

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request

SKU: 367 Categories: Thermocouples, Plug-in thermocouple

Is your product not included?

Do you need an offer in advance? Do you need an individual solution? No problem: just give us a call and send us an email. Phone: +49 (0) 2266 / 487330-30 or E-Mail: info@therma-shop.de.
